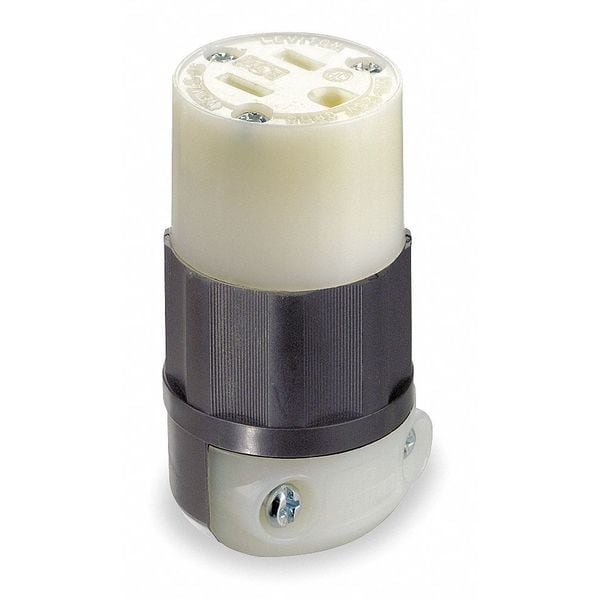

Electrical Plugs 5-15R Conn Hospital Grade Black-White
| Item | Straight Blade Connector |
|---|---|
| Item - Plugs and Receptacles | Straight Blade Connector |
| Amps - Plugs and Receptacles | 15 |
| Amps | 15 |
| Voltage | 125VAC |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15R |
| NEMA Receptacle Configuration | 5-15R |
| Number of Poles | 2 |
| NEMA Configuration | 5-15R |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black, White |
| Grade - Plugs and Receptacles | Hospital |
| Color | Black, White |
| Antimicrobial | No |
| Special Features | Dust, Moisture, and Water Resistant |
| Power Indicator | No |
| IP Rating | Not Rated |
| Standards | ANSI C-73, CSA Certified C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057, UL 498 File E13399, UL Fed Spec WC-596 File E13393 |
| Material | Super Tough Nylon |
| Grade | Hospital Grade |
| Phase | Single |
| HP | 0.5 |
| Cord Size | 0.245 to 0.7 in |
| Corrosion Resistant | No |
| Minimum Wire Size | 18 AWG |
| Maximum Wire Size | 10 AWG |
| Housing Color | Black, White, Clear |
| Voltage Rating | 125V AC |
| Power Indicating Light | No |
| Current Rating | 15A |
| For Maximum Cable Diameter | 0.7 in |
| For Minimum Cable Diameter | 1/4 in |
| Horsepower Rating | 0.5 HP |
| Connection Orientation | Straight |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Polarized | Yes |
| Housing Material | Nylon |
| Cap Type | No Cap or Cover |
| Hazardous Location Specification | Not Applicable |
| Market | Industrial |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Shrouded | Yes |
| Package Quantity | 1 |
