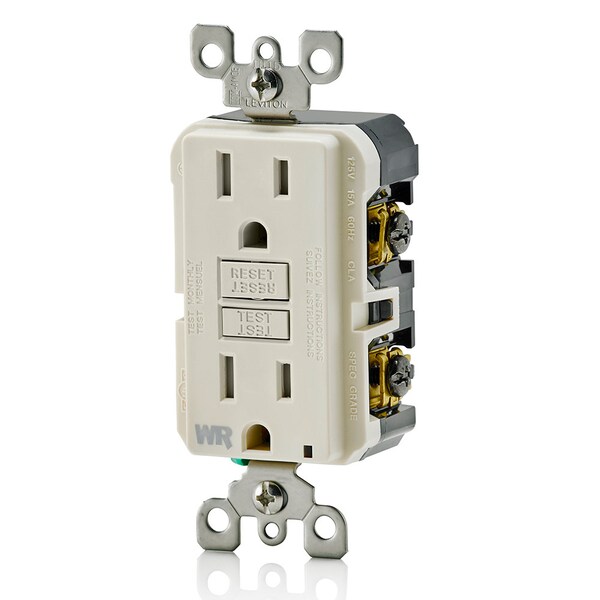

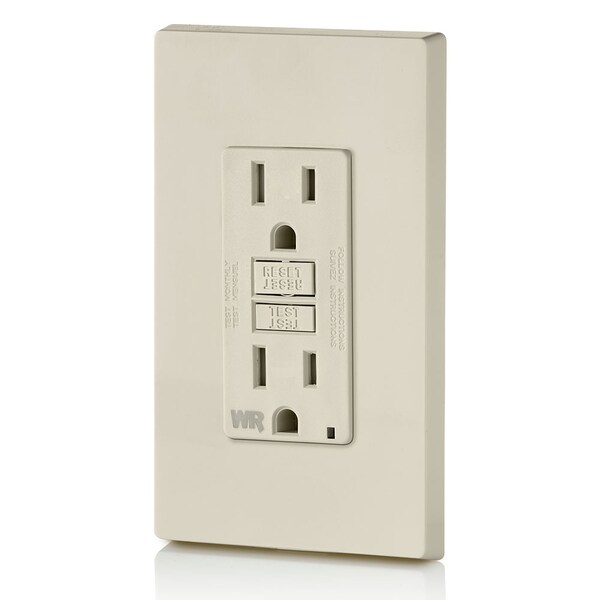

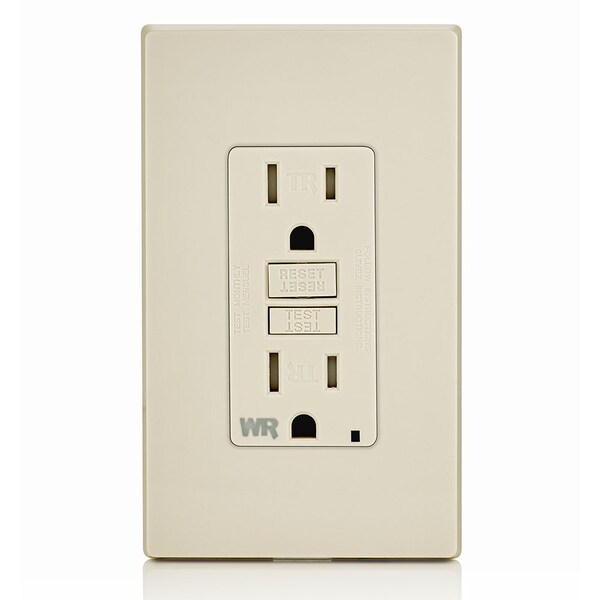

Tomacorrientes eléctricos de 15 amperios con protección contra fallas a tierra y diseño delgado en color marfil
| Grounding | Green Ground Screw |
|---|---|
| Standards | ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380 |
| Weather Resistant | Yes |
| Color | Ivory |
| Tamper Resistant | Yes |
| Voltage | 125 VAC |
| Type | GFCI |
| Length | 8-3/4 in |
| Height | 5 in |
| UL 943 | File E48380 |
| Fed Spec WC-596 | Yes |
| Terminal Screws | Stainless Steel |
| Pole | 2 |
| Wire | 3 |
| Grade | Residential/Commercial Specification Grade |
| Feature | Self-Test |
| UL498 | Yes |
| NEMA | 5-15R |
| ANSI | C-73 |
| Grounding Screw | Stainless Steel |
| Line Contacts | Brass |
| Face Material | Polypropylene |
| At Rated Voltage | 1 HP |
| Yoke | Stainless Steel |
| Standards and Certifications | UL/CSA, NEMA WD6 |
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
| CSA C22.2 No. 42 | Yes |
| Terminal Accom. | 14-10 AWG |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Termination | Back, Side |
| CSA-C22.2 No. 144.1-06 | File LR-57811 |
| Short Circuit Current Rating | 10KA |
| Operating Temperature | -35C to +66C |
| Amperage | 15 A |
| Trip Level | Class A, 5mA plus or minus 1mA |
| Strap Material | Stainless Steel |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Clamps | Brass |
| Body Material | Polycarbonate |
| Voltage Rating | 125 V |
| Dimensions | 4.21 in H x 1.69 in W x 1.32 in D |
| NEMA Rating | NEMA 5-15R |
| Terminal Type | Back/Side Wired |
| Temperature Rating | -35 to 66 °C |
| Package Quantity | 1 |
