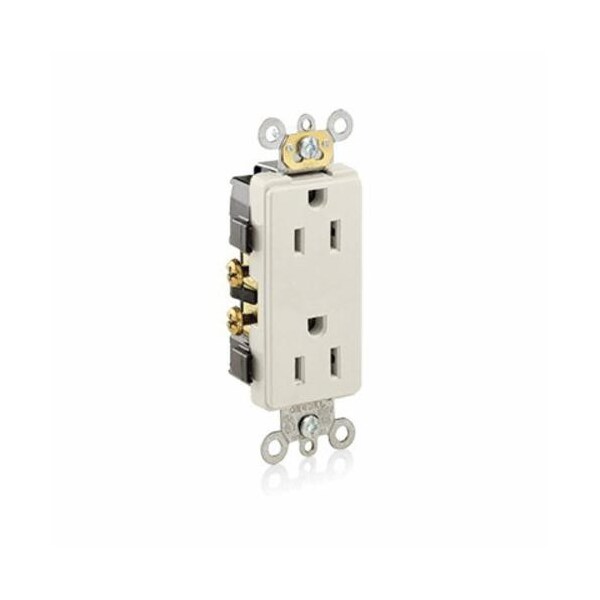

Electrical Receptacles 15A/125V Decora Recept - Lt Almond
| Material | Thermoplastic |
|---|---|
| Color | Light Almond |
| Voltage | 125 VAC |
| Phase | 1 |
| Type | Straight Blade;Duplex Outlet |
| Height | 8-1/2 in |
| CSA C22.2 No. 42 | File LR-406 |
| Flammability | Rated V-2 per UL 94 |
| Screw Terminal Torque | 14-18 in-lbs |
| Body Material | PBT Polyester Blend |
| ANSI | C-73 |
| Temperature Rise | Max 30°C temperature rise at full rated current |
| Ground Clips | Brass-Plated |
| Dielectric Voltage | Withstands 3000V min |
| Line Contacts | 0.030" Phosphor Bronze |
| Clamp Nuts | Zinc-Plated Steel |
| Grade | Commercial Specification Grade |
| Operating Temperature | -40°C to 60°C |
| Device Type | Duplex Receptacle Outlet |
| Strap Material | Steel |
| Current Limiting | Full Rated Current |
| At Rated Voltage | 0.5 HP |
| Grounding | Self-Grounding |
| Terminal Screws | #8 Triple Drive Brass |
| Grounding Screw | Brass, #8 Hex Head |
| Wire | 3 |
| Applicable Standards | UL 498, Fed Spec W-C-596, CSA C22.2 No.42 |
| Terminal Accom. | 14-10 AWG |
| Feature 4 | Smooth Face |
| Pole | 2 |
| UL498 | File E13399 |
| Certification/Listing | cULus, NON-ANCE |
| Face Material | PBT Polyester Blend |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination | Back and Side Wire |
| Amperage | 15 A |
| NEMA | 5-15R |
| Voltage Rating | 125 V |
| Length | 12-3/4 in |
| Mounting | Wall Box |
| Dimensions | 4.06 in H x 1.52 in W x 1.14 in D |
| Dielectric Strength | 2000 (Min.) V |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399) |
| Temperature Rating | -40 to +60 °C |
| Application | Commercial |
| Enclosure | NEMA WD-1, WD-6 |
| Connection | Back and Side Wired |
| Terminal Type | Back/Side Wired |
| Environmental Conditions | Flammability |
| Package Quantity | 1 |
