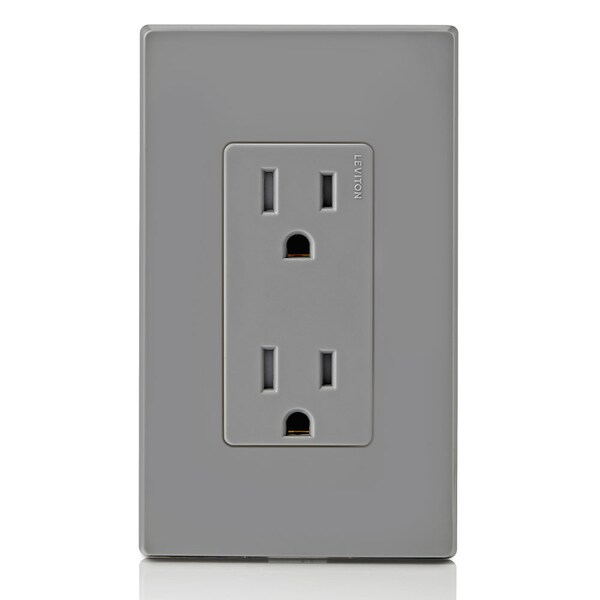

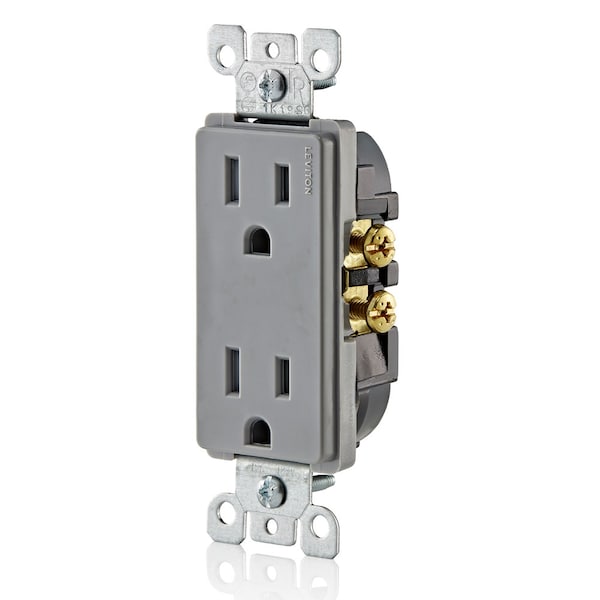

Electrical Receptacles 5-15R Decora Recep Tr Gray
| Color | Gray |
|---|---|
| Type | Duplex Receptacle |
| Material | Thermoplastic |
| Voltage | 120 VAC |
| Height | 11.563 in |
| Length | 19 in |
| Application | Commercial |
| Pole | 2 |
| Company/brand | Decora |
| CSA C22.2 No. 42 | File 152105; Class 6233-01 |
| UL 498 | File E13399 |
| Blade Type | Straight Blade |
| Wire | 3 |
| Torque Range | 14 - 18 in.-lbs |
| NEMA | 5-15R |
| Termination | Quickwire Push-In & Side |
| Grounding | Grounded |
| Amperage | 15 A |
| Feature | Tamper-Resistant |
| Dimensions | 4.2 in H x 1.33 in W x 0.76 in D |
| Grade | Residential |
| Standard | NEMA (WD-6);ANSI (C-73);NOM Certified (057);CSA Certified (File LR-406);CSA C22.22 No. 111;UL Listed (File E-13399);UL 20;UL Listed 498;UL Listed 943 |
| Connection | Quickwire Push-In and Side Wired |
| Mounting | Wallplate |
| Wire Size | 14 AWG |
| Environmental Conditions | Flammability |
| Temperature Rating | -40 to +60 °C |
| Voltage Rating | 125 V |
| Terminal Type | Quick-Wire® Push-In/Side Wired |
| Package Quantity | 1 |
