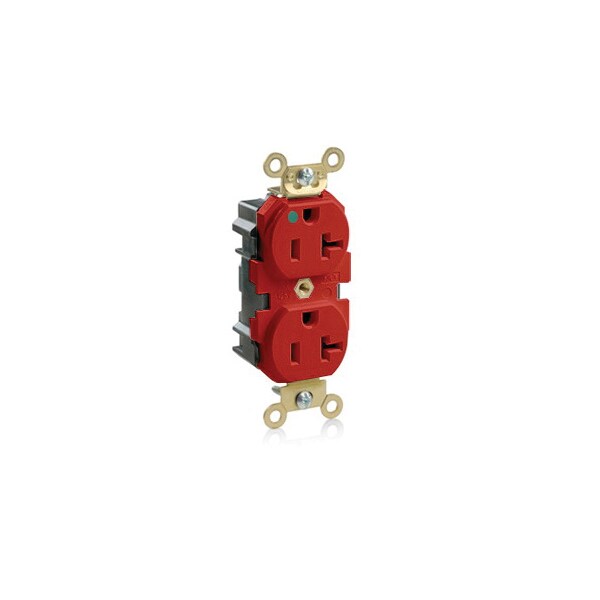

Receptáculos eléctricos 5-20 Lev Lok Hg Mri Recep Rojo de Leviton proporcionan una conexión segura y confiable para sus dispositivos eléctricos. Estos receptáculos son ideales para entornos de resonancia magnética.
| Type | Straight Blade;Duplex Outlet |
|---|---|
| Size | 46 H x 1.53 W x 1.22 D in |
| Material | Thermoplastic |
| Phase | 1 DEG C |
| Height | 9-1/4 in |
| Voltage | 125 VAC |
| Color | Red |
| Flammability | Rated V-2 per UL94 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Mounting Strap | Brass |
| Locking Pins | Solid Brass |
| Function | MRI |
| Device Type | Duplex Receptacle Outlet |
| Ground Clips | Brass |
| Bushing | Solid Brass |
| Wire | 3 |
| Amperage | 20 A |
| Mounting Screws | Triple Combination Head, Steel |
| ANSI | C-73 |
| Line Contacts | 0.040 Thick Solid Brass |
| Base Material | Nylon |
| Grounding | Self-Grounding |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Cover Material | Nylon |
| Termination | Modular |
| cULus | Listed |
| Maximum Working Voltage | 125V as rated |
| Feature 4 | Smooth Face |
| NEMA | WD-6, WD-1 |
| NOM Certified | 57 |
| Pole | 2 |
| Operating Temperature | -40°C to 60°C |
| Horsepower Rating | 1 HP |
| Current Interrupting | Certified for current interrupting at full rated current |
| Grade | Extra Heavy-Duty Hospital Grade |
| Dielectric Strength | 2000 (Min.) V |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);cULus Listed |
| Length | 10-3/4 in |
| Connection | Modular Terminal in |
| Wire Size | 12 AWG |
| Temperature Rating | -40 to +60 °C |
| Environmental Conditions | Flammability V |
| NEMA Rating | 5-20R |
| Application | Commercial |
| Voltage Rating | 125 V |
| Mounting | Wall Box |
| Package Quantity | 1 |
