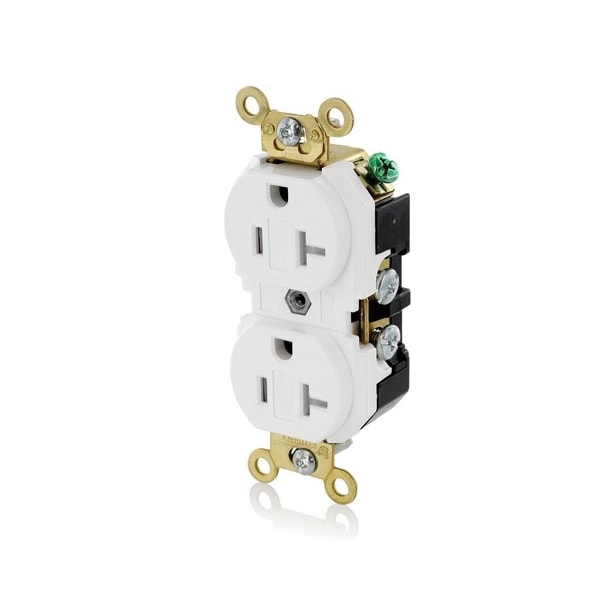

ELECTRICAL RECEPTACLES 5-20R IND GRD RECEP BRASS STRAP WHITE
| Color | White |
|---|---|
| Height | 4.12 in |
| Voltage | 125 VAC |
| Standards | NEMA WD1/WD6ANSI C73CSA C22.2 No. 42Federal Specification W-C 596UL 498 |
| Type | Duplex Receptacle |
| Terminal Screws | Brass 10-32 |
| Wire | 3 |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Certification/Listing | NOM-ANCE, CSA, UL |
| Wire Type | Solid or Stranded Building Wire |
| Pole | 2 |
| Applicable Standards | UL 498, CSA C22.2 No. 42, FedSpec W-C 596 |
| Grounding Screw | Brass 8-32 |
| Grade | Extra Heavy-Duty Industrial Specification Grade |
| Flammability | Rated V-2 per UL 94 |
| Termination | Back, Side Wire |
| Feature | Tamper-Resistant|Smooth Face |
| Face Material | Nylon |
| Screw Terminal Torque | 14-18 in-lbs |
| Body Material | Nylon |
| At Rated Voltage | 1 HP |
| Operating Temperature | -40°C to 75°C |
| NEMA | WD-6, WD-1 |
| Strap Material | Brass .050" |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Amperage | 20 A |
| Terminal Accom. | 14-10 AWG |
| ANSI | C-73 |
| Device Type | Duplex Receptacle Outlet |
| Terminal Clamp | Steel |
| Grounding | Self-Grounding |
| Ground Clips | Brass |
| Line Contacts | Triple-Wipe .040" High Performance Brass Alloy |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Length | 12 in |
| Terminal Type | Back/Side Wired |
| Application | Hospital |
| Temperature Rating | -40 to 75 °C |
| Dimensions | 4.06 in H x 1.53 in W x 1.27 in D |
| NEMA Rating | NEMA 5-20R |
| Package Quantity | 1 |
