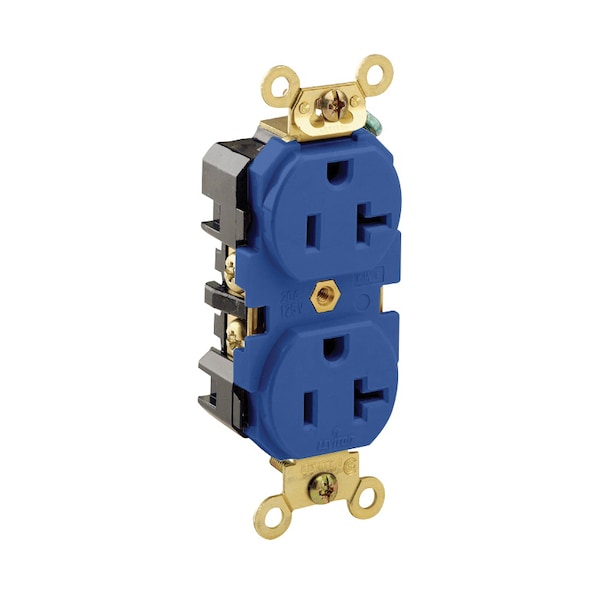

ELECTRICAL RECEPTACLES 5-20R ING GRD RECEP BRASS STRAP BLUE
| Type | Duplex Receptacle |
|---|---|
| Height | 4.12 in |
| Width | 1.38 in |
| Material | Nylon |
| Voltage | 125 VAC |
| Standards | NEMA WD6ANSI C73CSA File No. 152105NOM 057UL 498 File No. E13399 |
| Color | Blue |
| UL498 | File E13399 |
| Dielectric Voltage | Withstands 2000V per UL498 |
| At Rated Voltage | 1 HP |
| Termination | Back, Side Wire |
| Feature 4 | Smooth Face |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Terminal Screws | Brass 10-32 |
| Terminal Accom. | 14-10 AWG |
| Wire | 3 |
| Face Material | Thermoplastic Nylon |
| CSA C22.2 No. 42 | File 152105 |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| ANSI | C-73 |
| Amperage | 20 A |
| Body Material | Thermoplastic Nylon |
| Flammability | Rated V-2 per UL 94 |
| Clamp Nuts | Zinc-Plated Steel |
| Ground Clips | Brass-Plated |
| Grounding Screw | Brass 8-32 |
| UL Fed Spec WC-596 | File E13399 |
| Grade | Extra Heavy-Duty Industrial Specification Grade |
| NEMA | WD-6 |
| Pole | 2 |
| Strap Material | Brass |
| Grounding | Self-Grounding |
| Current Limiting | Full Rated Current |
| Operating Temperature | -40°C to 60°C |
| Screw Terminal Torque | 14-18 in-lbs |
| Device Type | Duplex Receptacle Outlet |
| Line Contacts | Brass Triple-Wipe |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Back/Side Wired |
| Length | 1.88 in |
| NEMA Rating | NEMA 5-20R |
| Application | Commercial |
| Voltage Rating | 125 V |
| Package Quantity | 1 |
