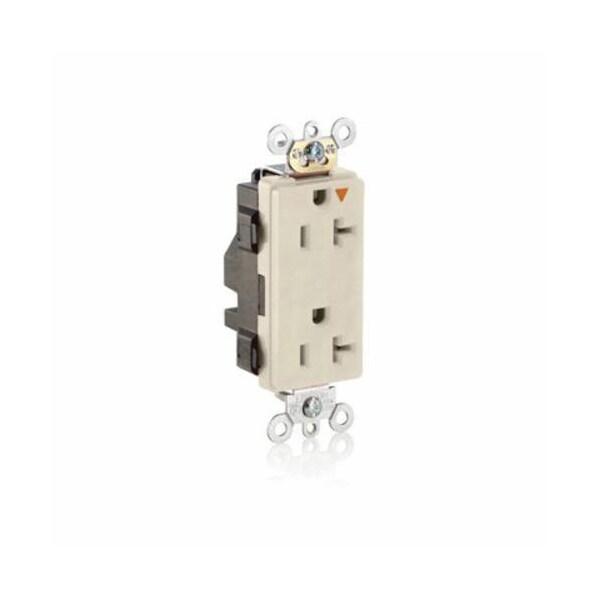

Electrical Receptacles 5-20R Lev Lok Tr Ind Grd Ig Recep La
| Color | Light Almond |
|---|---|
| Width | 1.88 in |
| Height | 4.12 in |
| Voltage | 125 VAC |
| Wire | 3 |
| Ground Clips | Brass |
| UL Fed Spec WC-596 | File E13399 |
| Grade | Heavy-Duty Industrial Specification Grade |
| Body Material | Nylon |
| Lead Identification | Leads identified in accordance with UL 498 (black, white & green) |
| Feature | Tamper-Resistant|Smooth Face |
| Line Contacts | 0.040 Thick Solid Brass |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Strap Material | Galvanized Steel |
| Termination | Modular |
| Current Limiting | Full Rated Current |
| NEMA | WD-6 |
| Face Material | Nylon |
| Amperage | 20 A |
| Isolated Ground System | Brass |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Device Type | Duplex Receptacle Outlet |
| Function | Isolated Ground |
| Pole | 2 |
| Horsepower Rating | 1 HP |
| Shutter Mechanism | Delrin® Acetal |
| Grounding | Self-Grounding |
| ANSI | C-73 |
| Locking Pins | Solid Brass |
| CSA C22.2 No. 42 | File 152105 |
| Operating Temperature | -40°C to 60°C |
| UL 498 | File E13399 |
| Length | 1.81 in |
| Package Quantity | 1 |
