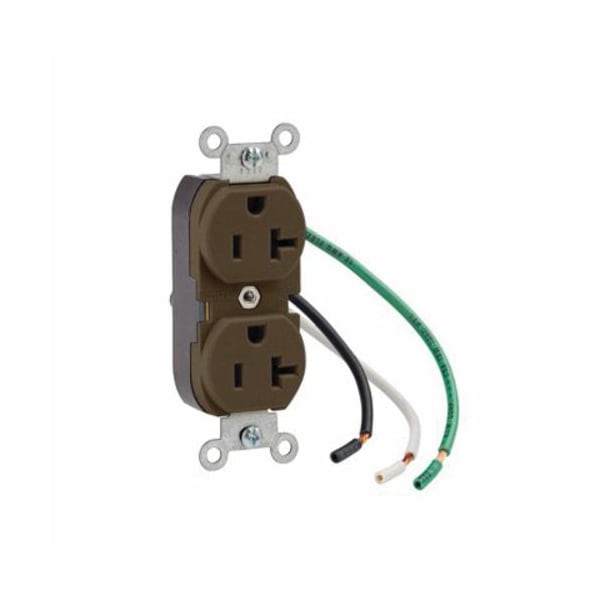

Electrical Receptacles 5-20R Recep Comm Grd Leaded Brown
| Type | 1-Phase Duplex Heavy Duty Self-Grounding Slim |
|---|---|
| Height | 9-1/8 in |
| Voltage | 125 VAC |
| Color | Brown |
| Mounting Screws | Triple Combination Head, Steel |
| Mounting Strap | Galvanized Steel with Riveted Ground Contacts |
| NEMA | WD-6 |
| Dielectric Voltage Withstand | 2000V minimum per UL 498 |
| Terminal Screws | 12GA THHN Wire Lead 6 Inch |
| Wire | 3 |
| Termination | Pre-Wired Leads |
| Base Material | Thermoplastic |
| Cover Material | Thermoplastic |
| Terminal ID | Black-Hot, Green-Ground, White-Neutral |
| Lead Identification | Leads identified in accordance with UL 498 (black, white & green) |
| Operating Temperature | -40°C to 60°C |
| Power Contacts | Brass, triple wipe |
| Grounding Screw | 12GA THHN Green Wire Lead 6 Inch |
| Bushing | Die Cast Aluminum |
| UL498 | File E13399 |
| Face Material | Nylon |
| Flammability | Rated V-2 per UL 94 |
| Feature | Smooth Face |
| Screw Terminal Torque | 14-18 in-lbs |
| Current Interrupting | Certified for current interrupting at full rated current |
| At Rated Voltage | 1 HP |
| Grounding Leads | 6", #12 AWG THHN |
| Line Contacts | Brass Triple Wipe .031 Thick |
| Grounding | Self-Grounding |
| Maximum Working Voltage | 125V as rated |
| Terminal Leads | 6", #12 AWG THHN |
| Amperage | 20 A |
| Pole | 2 |
| Device Type | Duplex Receptacle Outlet |
| Grade | Commercial Specification Grade |
| ANSI | C-73 |
| Body Material | Nylon |
| CSA C22.2 No. 42 | File 152105 |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Horsepower | 1 |
| Length | 20 in |
| NEMA Rating | NEMA 5-20R |
| Temperature Rating | -40 to 60 |
| Terminal Type | Side Wired |
| Dimensions | 46 in H x 1.33 in W x 19 in D |
| Amperage Rating | 20 |
| Voltage Rating | 125 |
| Package Quantity | 1 |
