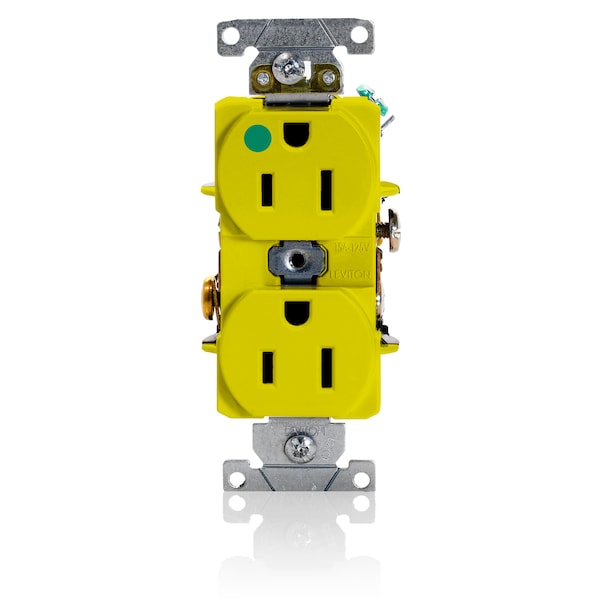

ELECTRICAL RECEPTACLES 515R HG RECEP YLW
| Type | RECEPTACLE DUPLEX |
|---|---|
| Color | Yellow |
| Voltage | 125 VAC |
| Height | 8-1/2 in |
| Application | Hospital Grade |
| Length | 12-3/4 in |
| Face Material | PBT Polyester Blend |
| Horsepower Rating | 0.5 HP |
| Dielectric Voltage | Withstands 3000V min |
| Terminal Screws | #8 Triple Drive Brass |
| Device Type | Duplex Receptacle Outlet |
| ANSI | C-73 |
| Strap Material | Steel |
| Termination | Back and Side Wire |
| NEMA | WD-6, WD-1 |
| Grade | Heavy-Duty Hospital Grade |
| CSA C22.2 No. 42 | File 152105 |
| Operating Temperature | -40°C to 75°C |
| Pole | 2 |
| Line Contacts | 0.030" Phosphor Bronze |
| Terminal Accom. | #14-#10 AWG |
| Wire | 3 |
| Grounding | Self-Grounding |
| Grounding Screw | Brass, #8 Hex Head |
| Ground Clips | Brass |
| Terminal ID | Brass-Hot, Silver-Neutral, Green-Ground |
| Flammability | Rated V-0 per UL 94 |
| UL Fed Spec WC-596 | File E13399 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Amperage | 15 A |
| UL498HG | File E13399 |
| Body Material | PBT Polyester Blend |
| Voltage Rating | 125 V |
| NEMA Rating | 5-15R |
| Package Quantity | 1 |
