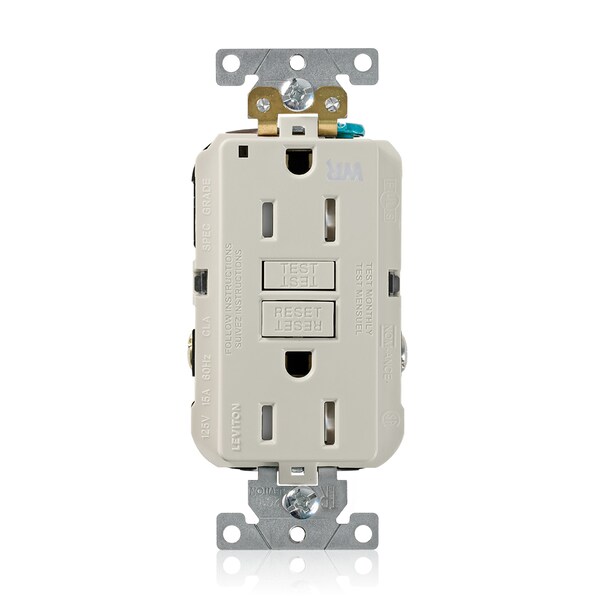

Este tomacorriente eléctrico Leviton 515R WR TR GFCI WHT proporciona protección contra descargas eléctricas y un funcionamiento seguro. Ideal para usar en interiores y exteriores.
| Grounding | Self-Grounding |
|---|---|
| Material | Polycarbonate, PBT |
| Voltage | 125 VAC |
| Color | White |
| Type | Self-test SmartLock Pro Slim GFCI |
| Application | Industrial |
| Height | 4-1/4 in |
| Length | 2-1/4 in |
| Width | 1.69 in |
| Terminal Screws | Stainless Steel |
| Line Contacts | Brass |
| NEMA | WD-6, WD-1 |
| At Rated Voltage | 1 HP |
| Device Type | Duplex Receptacle Outlet |
| Pole | 2 |
| Amperage | 15 A & 20 A Feed-Through |
| Terminal Accom. | 14-10 AWG solid or stranded |
| Screw Terminal Torque | 14-18 in-lbs |
| Grade | Extra Heavy-Duty Industrial Specification Grade |
| Strap Material | Nickel Plated Steel |
| Wire | 3 |
| Applicable Standards | UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596 |
| Operating Temperature | -35C to +66C |
| Flammability | Rated V-0 per UL 94 |
| Face Material | PBT |
| Terminal Clamp | Brass |
| Ground Clips | Brass |
| Certification/Listing | UL, CSA, NOM-ANCE |
| Terminal ID | Black-Hot, White-Neutral, Green-Ground |
| ANSI | C-73 |
| Shutter Mechanism | Delrin® Acetal |
| Termination | Back, Side Wire |
| Short Circuit Current Rating | 10KA |
| Function | GFCI |
| Feature | Weather and Tamper-Resistant|Power Indication |
| Body Material | Polycarbonate |
| Grounding Screw | Stainless Steel |
| Dimensions | 4.05 in H x 1.74 in W x 1.36 in D |
| Amperage Rating | 15 A |
| NEMA Rating | 5-15R |
| Temperature Rating | -35C to +66C °C |
| Terminal Type | Back/Side Wired |
| Voltage Rating | 125 V |
| Package Quantity | 1 |
