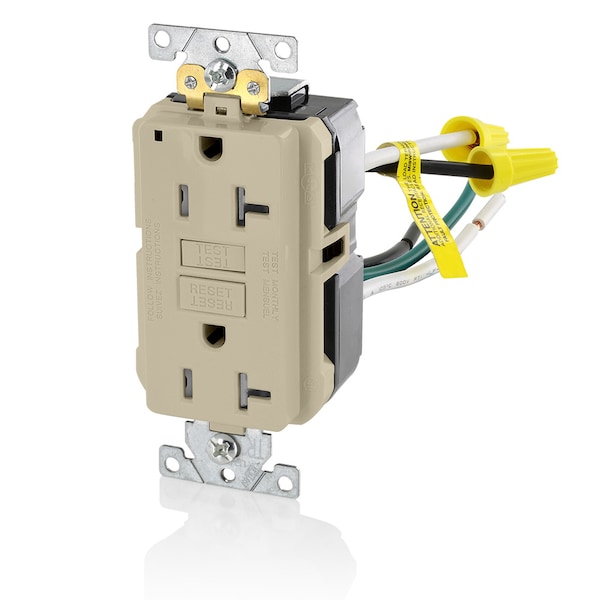

Este tomacorriente eléctrico Leviton 520R SLCK PRO GFI con cables TR IV está diseñado para brindar seguridad y protección en entornos húmedos. Cumple con las normas de calidad y seguridad, garantizando un rendimiento confiable para su hogar o negocio.
| Grounding | Self-Grounding |
|---|---|
| Material | Polycarbonate, PBT |
| Color | Ivory |
| Type | Self-test SmartLock Pro Slim GFCI |
| Length | 2-1/4 in |
| Width | 2 in |
| Height | 4-1/4 in |
| Application | Extra-Heavy Duty Industrial Grade |
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Short Circuit Current Rating | 10KA |
| Temperature Rise | Max 30C after 250 cycles overload at 200 percent rated current |
| NEMA | WD-6, WD-1 |
| Trip Level | Class A, 5mA plus or minus 1mA |
| Operating Temperature | -35C to +66C |
| Face Material | PBT |
| Line Contacts | Brass |
| Flammability | Rated V-0 per UL 94 |
| Wire Leads | #6" long 12 AWG TEW line & load leads plus ground leads |
| Body Material | Polycarbonate |
| Pole | 2 |
| Applicable Standards | UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596 |
| Certification/Listing | UL, CSA, NOM-ANCE |
| ANSI | C-73 |
| Terminal Accom. | 14-10 AWG solid or stranded |
| Strap Material | Galvanized Steel |
| Screw Terminal Torque | 14-18 in-lbs |
| At Rated Voltage | 1 HP |
| Ground Clips | Brass |
| Wire | 3 |
| Shutter Mechanism | Delrin® Acetal |
| Lead Identification | Black-Hot, White-Neutral, Green-Ground |
| Temperature Rating | -35C to +66C °C |
| Voltage Rating | 125 V |
| NEMA Rating | 5-20R |
| Dimensions | 4.05 in H x 1.74 in W x 1.36 in D |
| Grade | Extra Heavy Duty/Industrial |
| Amperage Rating | 20 A |
| Package Quantity | 1 |
