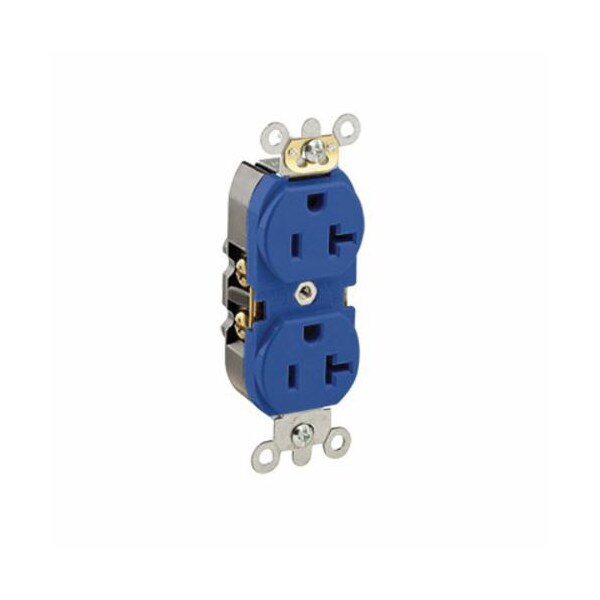

Electrical Receptacles Bu Rec Dup Narrow 2Po 3Wi 20A125V
| Color | Blue |
|---|---|
| Voltage | 125 VAC |
| Height | 8-1/2 in |
| Grounding | Self-Grounding |
| Device Type | Duplex Receptacle Outlet |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Feature 4 | Smooth Face |
| Ground Clips | Brass |
| Grade | Heavy-Duty Industrial Specification Grade |
| Line Contacts | Brass Triple-Wipe |
| Terminal Accom. | 14-10 AWG |
| Termination | Back, Side Wire |
| UL498 | File E13399 |
| NEMA | WD-6, WD-1 |
| ANSI | C-73 |
| Pole | 2 |
| Clamp Nuts | Galvanized Steel |
| Face Material | Thermoplastic Nylon |
| At Rated Voltage | 1 HP |
| UL Fed Spec WC-596 | File E13399 |
| Body Material | Thermoplastic Nylon |
| Grounding Screw | Steel 8-32 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Terminal Screws | Brass 10-32 |
| Current Limiting | Full Rated Current |
| Torque Range | 14-16 inch pounds |
| CSA C22.2 No. 42 | File 152105 |
| Operating Temperature | -40°C to 60°C |
| Strap Material | Steel |
| Screw Terminal Torque | 14-18 in-lbs |
| Wire | 3 |
| Amperage | 20 A |
| Flammability | Rated V-2 per UL 94 |
| Length | 12-3/4 in |
| Application | Commercial Applications |
| Package Quantity | 1 |
