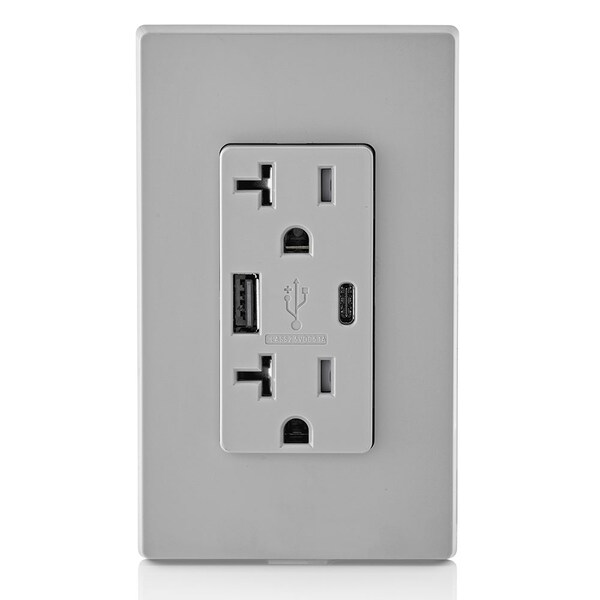

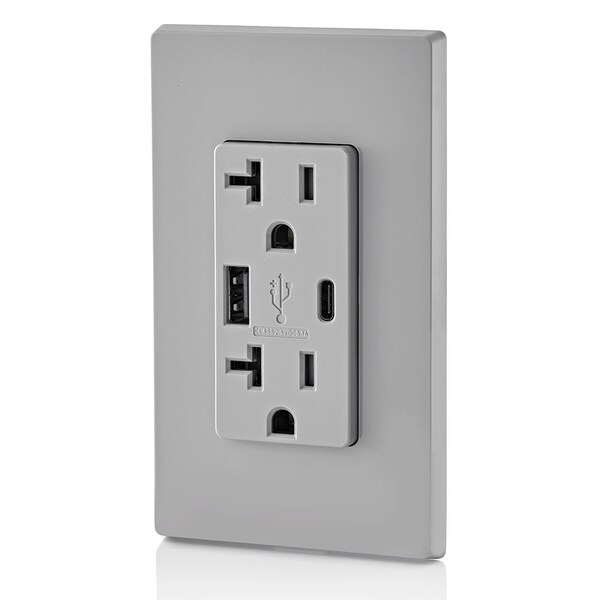

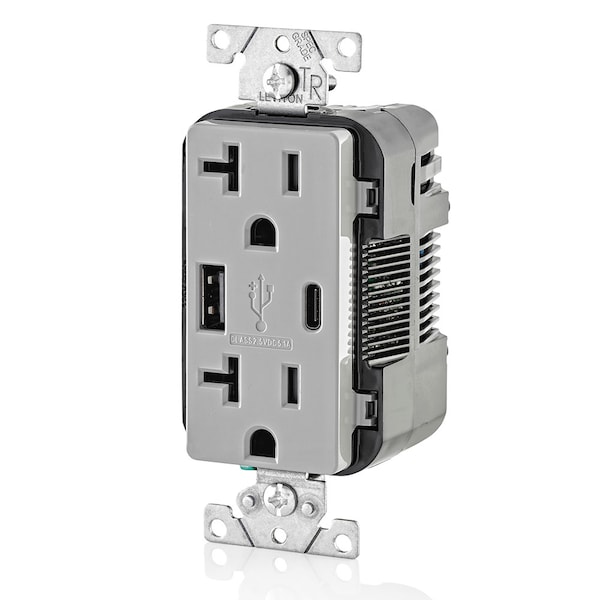

ELECTRICAL RECEPTACLES GY COMBDUP REC TYPE AC USBPT CHGR20A125V
| Voltage | 125 VAC |
|---|---|
| Height | 4-1/4 in |
| Width | 2 in |
| Color | Gray |
| Wiring Method | Back and Side Wired |
| Size | 4.04 in H x 1.73 in W x 1.68 in D |
| Type | Duplex Receptacle |
| Application | For use with USB 3.0, 2.0, 1.1 devices, Decora® wallplates and Decora Plus™ screwless wallplate |
| Length | 2-1/4 in |
| Horsepower Rating | 20A-1/2 HP |
| Listed | cCSAus |
| Amperage | 20 A |
| Cover Material | Thermoplastic |
| Terminal Accom. | 14-12 AWG |
| UL 498 | Yes |
| Torque Range | 14 - 18 in.-lbs |
| Grounding | Grounded |
| Grade | Residential/Commercial Specification Grade |
| Operating Temperature | -10°C to 40°C |
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| NEMA | 5-20R |
| Flammability | Rated V-0 per UL 94 |
| Product Type | Outlet/USB Combo |
| Termination | Back, Side |
| FCC Part 15 | Class B |
| UL 1310 | Yes |
| Body Material | Thermoplastic |
| Strap Material | Steel |
| Ratings | 20A-125V |
| Electrical Ratings | 20 A, 125 VAC |
| Connection | Threaded |
| USB Rating | 5.1 A at 5 VDC |
| Environmental Conditions | -10 to 40 |
| Standard | UL 1310, UL 498 |
| USB Quantity | 2 |
| Wire Size | 14 to 12 |
| Mounting | Surface |
| USB Type | C, Type-A |
| Package Quantity | 1 |
