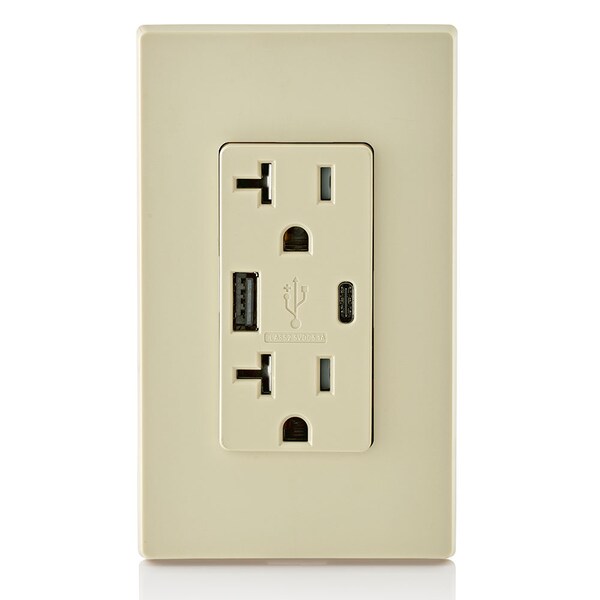

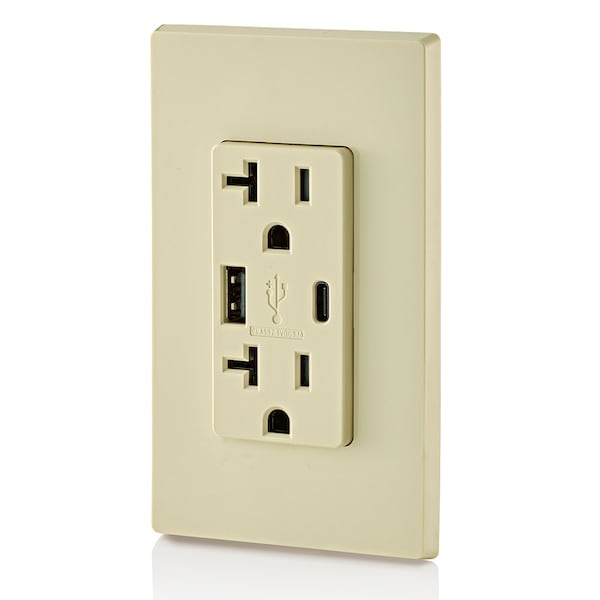

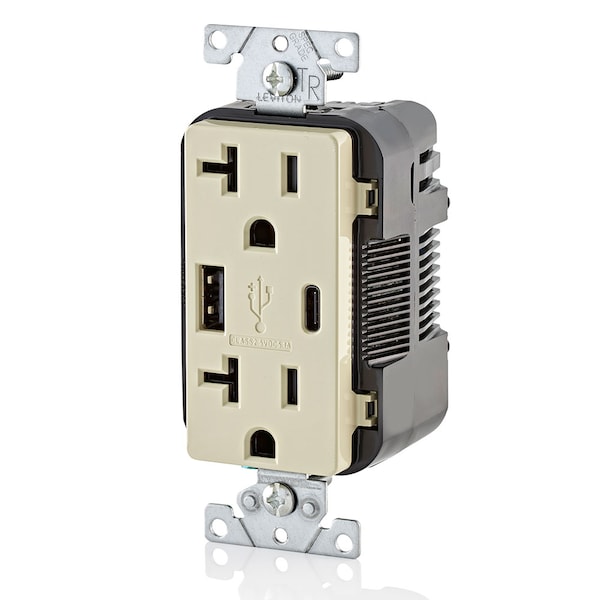

ELECTRICAL RECEPTACLES IV COMBDUP REC TYPE AC USBPT CHGR20A125V
| Type | Duplex Receptacle |
|---|---|
| Width | 2 in |
| Voltage | 125 VAC |
| Height | 4-1/4 in |
| Color | Ivory |
| Application | Kitchens, Bedrooms, Home Offices, College Dormitories, Airport Lounges, Hospitals, Salons and S |
| Length | 2-1/4 in |
| Operating Temperature | -10°C to 40°C |
| Grounding | Grounded |
| Grade | Residential/Commercial Specification Grade |
| Flammability | Rated V-0 per UL 94 |
| Torque Range | 14 - 18 in.-lbs |
| Listed | cCSAus |
| NEMA | 5-20R |
| Ratings | 20A-125V |
| UL 1310 | Yes |
| Terminal Accom. | 14-12 AWG |
| UL 498 | Yes |
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| FCC Part 15 | Class B |
| Strap Material | Steel |
| Termination | Back, Side |
| Horsepower Rating | 20A-1/2 HP |
| Product Type | Outlet/USB Combo |
| Amperage | 20 A |
| Body Material | Thermoplastic |
| Cover Material | Thermoplastic |
| Package Quantity | 1 |
