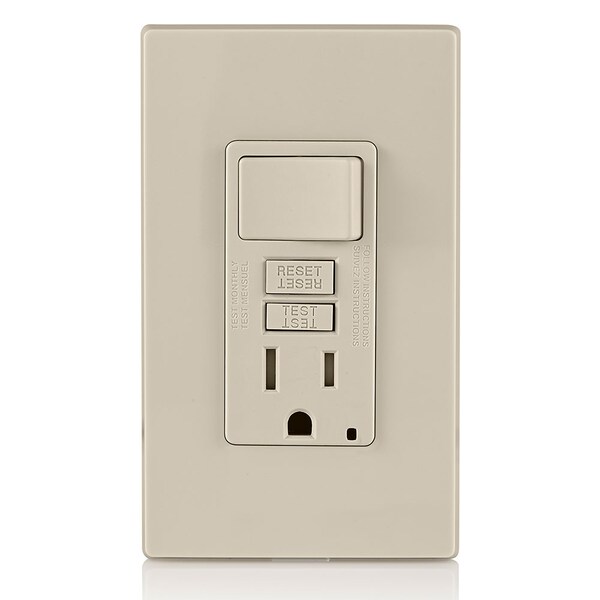

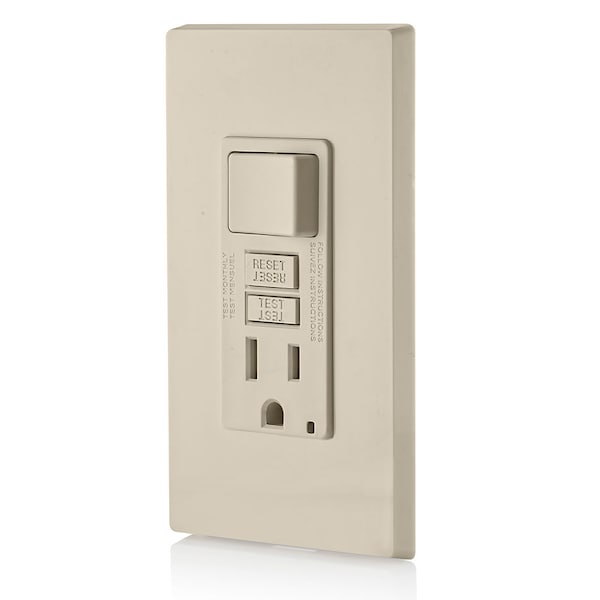

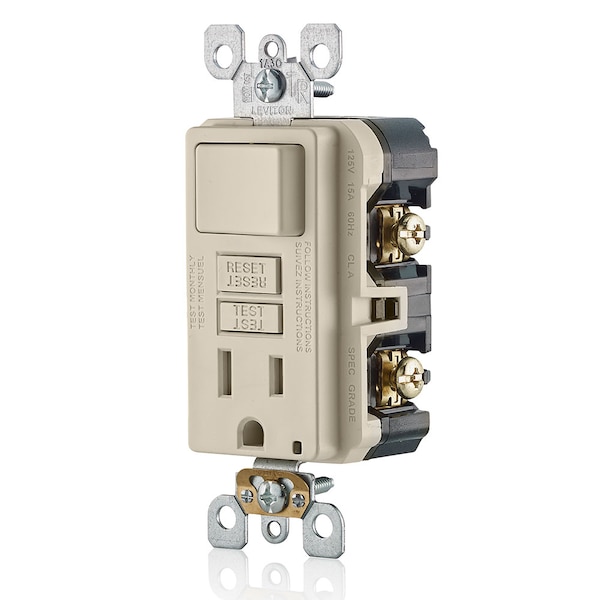

Este tomacorrientes eléctrico Leviton combina un interruptor con protección GFCI para ofrecer mayor seguridad y funcionalidad en su hogar. Conexión confiable y de alta calidad para cualquier aplicación.
| GFCI | CSA-C22.2 No. 144.1-06 Class A, UL 943 |
|---|---|
| Material | Polycarbonate, Thermoplastic |
| Voltage | 125 VAC |
| Color | Light Almond |
| Type | Combination |
| Tamper Resistant | Yes |
| Length | 8-1/2 in |
| Application | Commercial |
| Height | 4-1/4 in |
| Operating Temperature | -35C to +66C |
| Pole | 2 |
| Yoke | Galvanized Steel |
| Face Material | Thermoplastic |
| Amperage | 15 A |
| Terminal Screws | Plated Steel |
| Grounding Screw | Plated Steel |
| Wire | 3 |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| NEMA | 5-15R |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| cCSAus | Certified (File # LR-57811) |
| Grade | Residential/Commercial Specification Grade |
| Strap Material | Galvanized Steel |
| Terminal Accom. | 10-14 AWG |
| Receptacle | UL 498, CSA-C22.2 No. 42 |
| Feed-Through Current | 20 A |
| Line Contacts | Brass |
| Trip Level | Class A, 5mA plus or minus 1mA |
| Clamps | Brass |
| Standards and Certifications | CSA, NEMA WD6 |
| Short Circuit Current Rating | 10KA |
| Feature | Self-Test |
| Switch | UL 20, CSA-C22.2 No. 111 |
| Termination | Back, Side |
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
| Torque Range | 14-18 in.-lbs |
| Body Material | Polycarbonate |
| Mounting | Wall |
| Wire Size | 14 to 10 AWG |
| Voltage Rating | 125 V |
| Grounding Style | Self-Grounding |
| Enclosure | NEMA 5-15R |
| Electrical Ratings | 125 VAC, 15 A |
| Standard | CSA, UL |
| Dimensions | 4.21 in H x 1.69 in W x 1.32 in D |
| Terminal Type | Screw |
| Dielectric Strength | 1250 VAC |
| Package Quantity | 1 |
