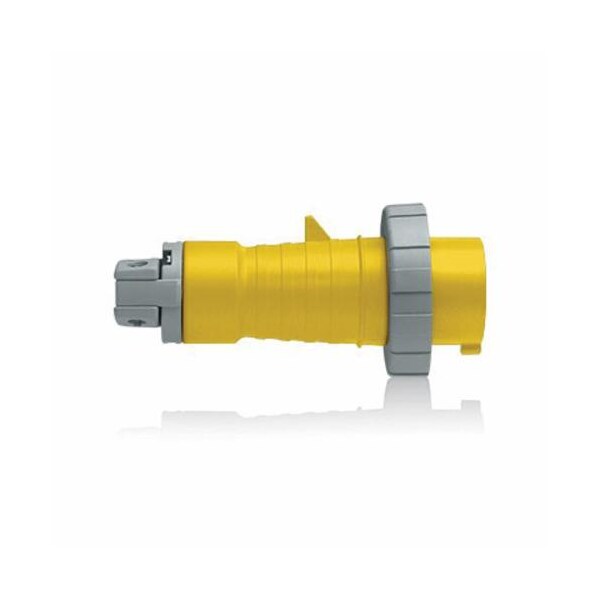

ELECTRICAL SLEEVES 30A 125V 2P 3W IEC PLUG
| Type | Watertight Plug |
|---|---|
| Length | 7-1/2 in |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Material | Valox 357 |
| Color | Yellow |
| Wire Size | 12-10 AWG |
| Terminal Type | Screw terminal |
| Frequency Rating | 50/60 Hz |
| Grade | Industrial |
| Temperature Rating | -40 to 60 °C |
| Dimensions | 3.7 in Dia x 6.85 in L |
| Connection | Screw Terminal |
| Mounting | Cable |
| Amperage Rating | 30 A |
| Height | 3.813 in |
| Environmental Conditions | Flammability (Rated V-2 per UL94);Humidity (32?C, 93%, 168 Hours) |
| Standard | CSA Certified (C22.2 No 182.1);UL Listed (1682 and 1686);IEC Rating (60309-1 and 60309-2);CE Marking (Per low voltage directives 73/23/EEC, 93/68/EEC) |
| Voltage Rating | 125 VAC |
| Application | Industrial |
| Enclosure | IP69K, IP67 |
| Package Quantity | 1 |
