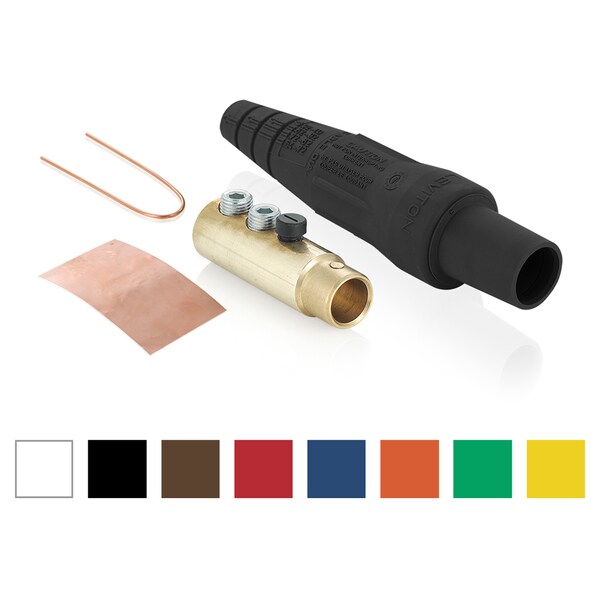

Conector hembra en color negro, fabricado en TPR para cable de 1/0-4/0, con capacidad para 400 amperios tanto en corriente alterna como en corriente continua. Producto de alta calidad y durabilidad de la marca Leviton.
| Item | Connector |
|---|---|
| Type | 16 Series Single Pole Cam |
| Series | 15 |
| Terminal Connection | Double Set Screw |
| Male/Female | Female |
| Current Rating | 400 A |
| Voltage Rating | 600VAC/250VDC |
| NEMA Rating | 3R, 4X, 12 |
| Cable Range | 1/0 to 4/0 |
| Amps AC/DC | 300 AC/DC |
| Material | Thermoplastic Elastomer |
| Conductor Material | Solid Brass |
| Color | Black |
| Fits | Male Plug |
| Standards | UL & CSA |
| Single Pole Device Style | Taper Nose |
| Application | Power Distribution Such as Construction Sites, Mining Operations, Welding, Cell Tower Backup Po |
| Height | 7-1/4 in |
| Width | 11 in |
| Length | 8 in |
| Amperage Rating | 400 A |
| Number of Poles | 1 |
| Package Quantity | 1 |
