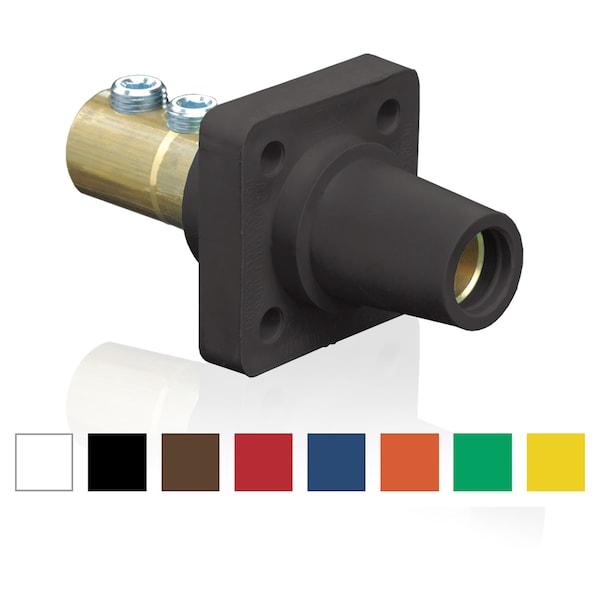

Conector hembra color café de 300Ac/Dc con pin sencillo, fabricado por Leviton. Ideal para conexiones eléctricas profesionales.
| Item | Connector |
|---|---|
| Type | Cam Type Female Taper Nose |
| Series | 15 |
| Terminal Connection | Single Pin |
| Male/Female | Female |
| Current Rating | 400 A |
| Voltage Rating | 600VAC/250VDC |
| NEMA Rating | 3R, 4X, 12 |
| Fits | Male Plug |
| Amps AC/DC | 300 AC/DC |
| Conductor Material | Solid Brass |
| Color | Brown |
| Standards | UL & CSA |
| Single Pole Device Style | Taper Nose |
| Mounting | Screw Mount |
| Material | Thermoplastic Elastomer |
| Cable Range | 2/0 to 4/0 |
| Height | 7-1/4 in |
| Width | 11 in |
| Application | Sports, Entertainment and Movie Industry, Welding and Construction Sites, Theme Parks and Carni |
| Length | 8 in |
| Wire Size | 1/0 to 4/0 |
| Contact Material | Brass |
| Number of Poles | 1 |
| Connection Type | Screw |
| Dimensions | 2.28 in L x 4.18 in W |
| Amperage Rating | 400 A |
| Mounting Type | Panel |
| Housing Material | Santoprene TPV |
| Package Quantity | 1 |
