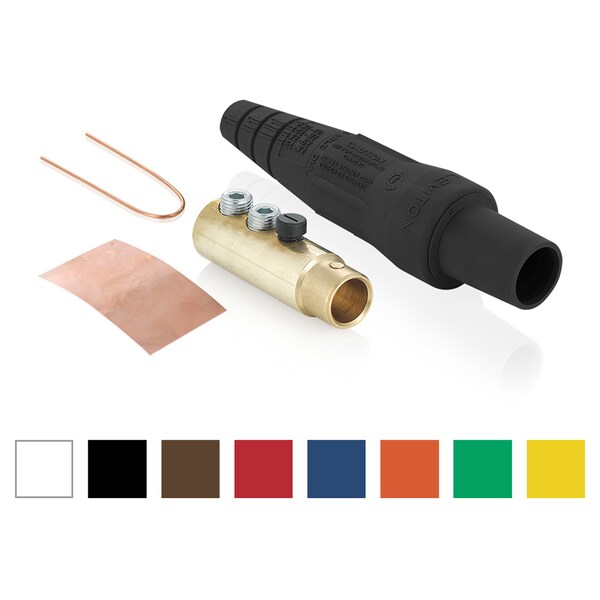

Conector hembra en color rojo, para cable de 2/0-4/0, fabricado en TPR y compatible con corriente de 300A tanto AC como DC.
| Item | Connector |
|---|---|
| Type | 16 Series Single Pole Cam |
| Series | 15 |
| Terminal Connection | Double Set Screw |
| Male/Female | Female |
| Current Rating | 400 A |
| Voltage Rating | 600VAC/250VDC |
| NEMA Rating | 3R, 4X, 12 |
| Color | Red |
| Single Pole Device Style | Taper Nose |
| Amps AC/DC | 300 AC/DC |
| Cable Range | 2/0 to 4/0 |
| Standards | UL & CSA |
| Material | Thermoplastic Elastomer |
| Conductor Material | Solid Brass |
| Fits | Male Plug |
| Height | 7-1/4 in |
| Length | 8 in |
| Width | 11 in |
| Housing Material | Santoprene TPV |
| Mounting Type | Threaded |
| Dimensions | 1.72 in Dia x 6.85 in L |
| Temperature Rating | 86 °F |
| Amperage Rating | 400 A |
| Wire Size | 2/0 To 4/0 AWG |
| Contact Material | Brass |
| Number of Poles | 1 |
| Package Quantity | 1 |
