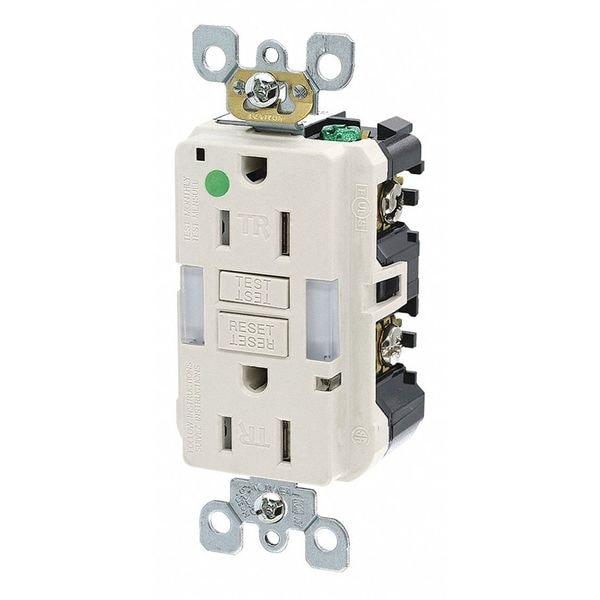

El receptáculo GFCI Leviton es ideal para proporcionar protección contra descargas eléctricas en entornos húmedos, con una capacidad de 15 amperios y 125 voltios. Cumple con los estándares de seguridad y es fácil de instalar.
| Item | GFCI Receptacle |
|---|---|
| Connection Orientation | Straight |
| Cover Type | Screw-On Cover |
| Current Rating | 15/20 A (Feed-Through) |
| GFCI | Yes |
| Phase | Single |
| Grounding | Grounded |
| Housing Color | Light Almond |
| Number of Outlets | 2 |
| Housing Material | Polycarbonate |
| Mounting Type | Flush |
| NEMA Enclosure Rating | Not Rated |
| NEMA Receptacle Configuration | 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Polarized | Yes |
| Standards | CSA, CSA C22.2 No. 42 and 144, Fed Spec W-C-596, NOM-ANCE, UL, UL 498, UL 943 |
| Weather Resistant | No |
| Application Environment | Hospital Grade |
| Voltage | 125VAC |
| Special Features | Illuminated |
| HP | 1.0 |
| Outlet Type | Decorator |
| Surge Suppression | No |
| NEMA Configuration | 5-15R |
| Tamper Resistant | Yes |
| Amps | 15 |
| Wiring Method | Back, Side |
| Reset Type | Manual |
| Color | Light Almond |
| Power Indicator | Yes |
| Self-Testing | Yes |
| Grade | Hospital Grade |
| Features | Reset Lockout Mechanism Prevents Reset of the GFCI if it is Not Wired or Operating Correctly |
| Overall Depth | 1.4 in |
| Receptacle Type | Decorator Duplex |
| Wire Connection Type | Screw Terminals |
| Face Plate Height | 2.7 in |
| Number of Wall Plates Included | 0 |
| Visual Indicator Lights | Power Connected |
| Hub Type | Feed Through |
| Maximum Wire Size | 12 AWG |
| Contact Material | Brass |
| Maximum Operating Temperature | 66 deg C |
| Number of Gangs | 4 |
| UL 94 Flammability Rating | V-0 |
| Face Plate Width | 1.3 in |
| Mount Hole Center-to-Center Height | 3.8 in |
| Minimum Wire Size | 14 AWG |
| Self Testing | Yes |
| Voltage Rating | 125 V AC |
| Minimum Operating Temperature | -35 deg C |
| Horsepower Rating | 1 HP |
| Resistance Properties | Tamper Resistant |
| AFCI | No |
| Wall Plate Material | Not Included |
| Compatible with Series | Not Applicable |
| For Location | Indoor |
| Hazardous Location Specification | Not Applicable |
| Flange Shape | Square |
| Includes Mounting Hardware | Yes |
| Maximum Surge Current | 6.5 kA |
| Flange Diameter | 3.8 in |
| Surge Protection | No |
| Flange Height | 4.2 in |
| For Environment | Industrial |
| IP Rating | Not Rated |
| Flange Type | Non-Flanged |
| Includes | Mounting Hardware |
| Market | Commercial |
| Shrouded | Yes |
| Mount Hole Center-to-Center Width | Not Applicable |
| Face Diameter | Not Applicable |
| Flange Material | Stainless Steel |
| Reverse Service | No |
| Housing Material Finish | Plain |
| Mount Type | Flush |
| Flange Width | 1.3 in |
| Package Quantity | 1 |
