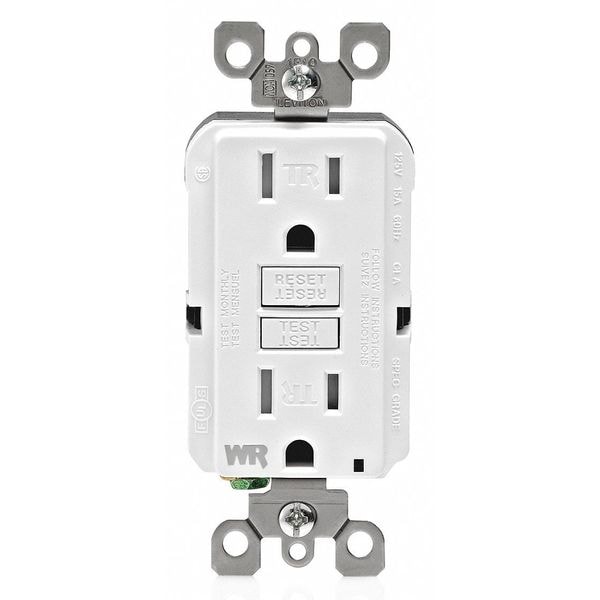

El receptáculo GFCI Leviton de 15 amperios y 125VAC proporciona protección contra descargas eléctricas. Con un diseño en color blanco, es perfecto para uso en interiores. Cumple con los estándares de seguridad y durabilidad.
| Item | GFI Receptacle |
|---|---|
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 15 A |
| GFCI | Yes |
| Phase | Single |
| Grounding | Grounded |
| Number of Outlets | 2 |
| Housing Color | White |
| Housing Material | Polycarbonate |
| NEMA Receptacle Configuration | 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Polarized | Yes |
| Standards | ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed |
| Weather Resistant - Plugs and Receptacles | Yes |
| Amps - Plugs and Receptacles | 15 A |
| Item - Plugs and Receptacles | GFCI Receptacle |
| Special Features | Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip |
| Tamper Resistant | Yes |
| NEMA Configuration | 5-15 |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Voltage | 125 VAC |
| Voltage - Plugs and Receptacles | 125 V |
| Mounting Type - Plugs and Receptacles | Flush |
| Self-Testing | Yes |
| Surge Suppression | Yes |
| Reset Type | Automatic |
| Application Environment | Commercial |
| Color | White |
| Power Indicator | Yes |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Outlet Type - Plugs and Receptacles | Duplex |
| Type | GFCI |
| Wiring Method | Back, Side |
| HP | 1 hp |
| Weather Resistant | Yes |
| Color - Plugs and Receptacles | White |
| Minimum Wire Size | 14 AWG |
| For Location | Outdoor |
| Reverse Service | Yes |
| Surge Protection | Yes |
| Overall Depth | 1 in |
| Horsepower Rating | 1 HP |
| Number of Poles & Wires | 2 Pole / 3 Wire |
| Wire Connection Types | Screw Terminals |
| Additional Electrical Protections | GFCI & Surge Protection |
| Self Testing | Yes |
| Maximum Operating Temperature | 150.8 deg F |
| Key Resistance Properties | Tamper & Weather Resistant, Tamper Resistant, Weather Resistant |
| Receptacle Type | Decorator Duplex |
| Voltage Rating | 125 V AC |
| Resistance Properties | Tamper Resistant, Weather Resistant |
| Grade | Federal Specification |
| Mount Type | Flush |
| Mount Hole Center-to-Center Height | 3.8 in |
| Includes Mounting Hardware | Yes |
| Market | Commercial, Residential |
| Minimum Operating Temperature | -31 deg F |
| Maximum Wire Size | 10 AWG |
| Contact Material | Brass |
| Visual Indicator Lights | Power Connected |
| Primary Resistance Properties | Tamper Resistant - Tamper Resistant - 15 A, Tamper Resistant - Weather Resistant - 15 A, Weather Resistant - Impact Resistant - 15 A, Weather Resistant - Tamper Resistant - 15 A, Weather Resistant - Weather Resistant - 15 A |
| Wire Connection Type | Screw Terminals |
| Face Plate Height | 2.7 in |
| Hub Type | Feed Through |
| Face Plate Width | 1.3 in |
| Additional Electrical Protection | GFCI, Surge Protection |
| Standards and Certifications | UL/CSA, NEMA WD6, NEMA WD1 |
| Short Circuit Current Rating | 10KA |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Wire | 3 |
| Strap Material | Stainless Steel |
| Feature | Self-Test |
| Body Material | Polycarbonate |
| CSA C22.2 No. 42 | Yes |
| ANSI | C-73 |
| Line Contacts | Brass |
| Operating Temperature | -35C to +66C |
| Trip Level | Class A, 5mA plus or minus 1mA |
| UL 943 | File E48380 |
| Terminal Accom. | 14-10 AWG |
| Fed Spec WC-596 | Yes |
| CSA-C22.2 No. 144.1-06 | File LR-57811 |
| Yoke | Stainless Steel |
| UL498 | Yes |
| Amperage | 15 A |
| Clamps | Brass |
| NEMA | 5-15R |
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
| Face Material | Polypropylene |
| At Rated Voltage | 1 HP |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Grounding Screw | Stainless Steel |
| Terminal Screws | Stainless Steel |
| Termination | Back, Side |
| Pole | 2 |
| Package Quantity | 1 |
