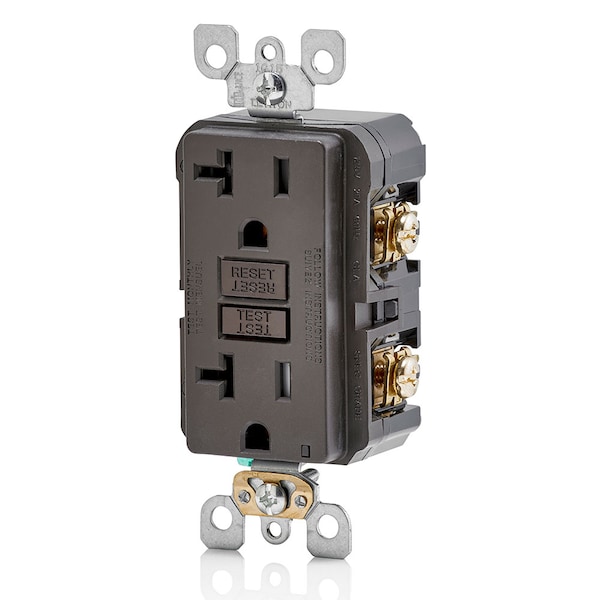

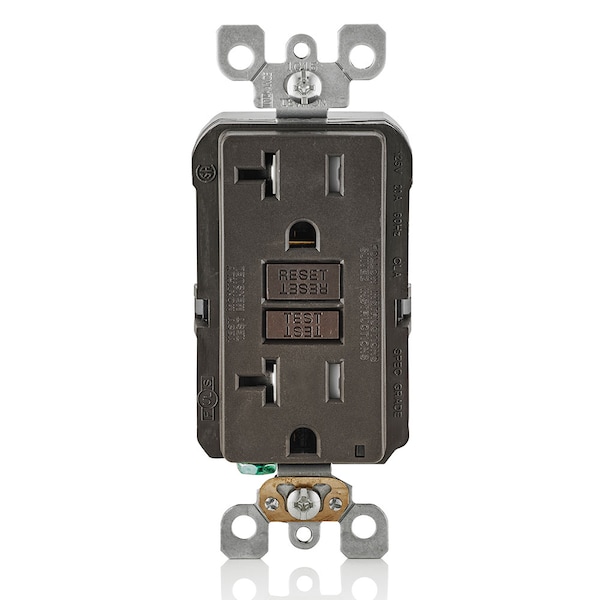

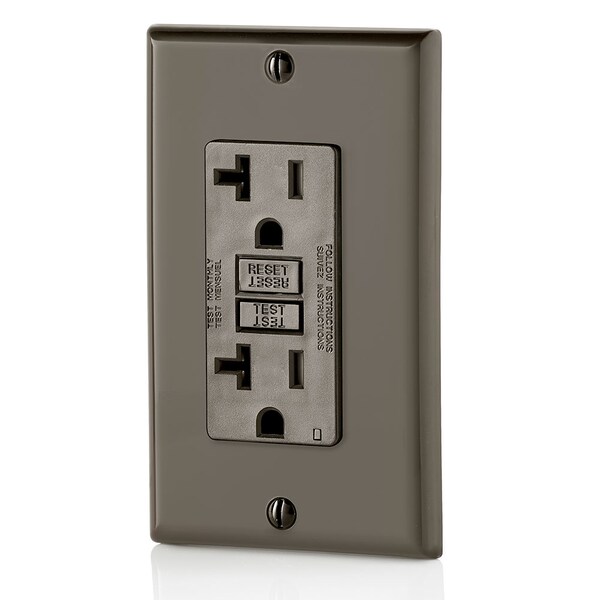

El receptáculo GFCI Leviton de 20A y 125Vac en color marrón proporciona protección contra descargas eléctricas en entornos húmedos y ofrece una instalación sencilla. Cumple con los estándares de seguridad eléctrica.
| Item | GFCI Receptacle |
|---|---|
| Mounting Type | Flush |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Standards | ANSI C-73, CSA C22.2 No. 42, 144.1-06 File No. LR-57811 Certified, Federal Specification WC-596, MIL-SPEC A-A-55459-SB, NEMA WD-6, NOM Certified, UL 498, 943 File No. E48380 Listed |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Outlet Type | Decorator |
| HP | 1.0 |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Voltage - Plugs and Receptacles | 125VAC |
| Amps | 20 |
| Color | Brown |
| Tamper Resistant | Yes |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 |
| Power Indicator | Yes |
| NEMA Configuration | 5-20R |
| Weather Resistant | No |
| Color - Plugs and Receptacles | Brown |
| Amps - Plugs and Receptacles | 20 |
| Type | GFCI |
| Voltage | 125VAC |
| Wiring Method | Back, Side |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Weather Resistant - Plugs and Receptacles | No |
| Surge Suppression | No |
| Reset Type | Automatic |
| Item - Plugs and Receptacles | GFCI Receptacle |
| Self-Testing | Yes |
| Application Environment | Commercial |
| Length | 9-1/4 in |
| Height | 6-1/4 in |
| Amperage Rating | 20 A |
| Voltage Rating | 125 V |
| Package Quantity | 1 |
