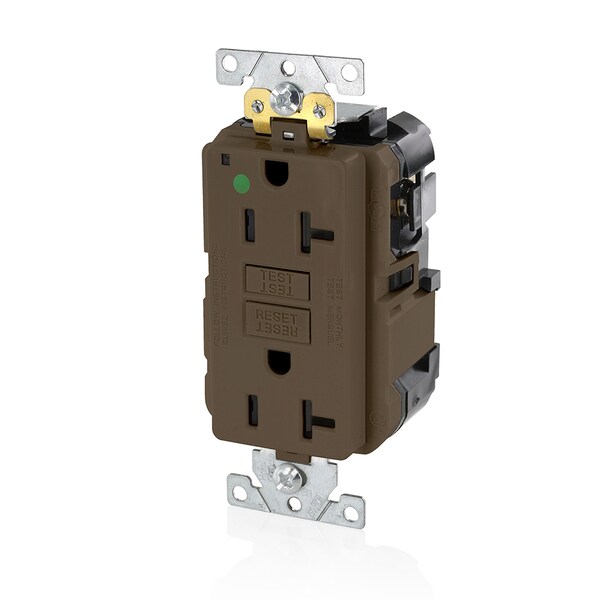

El receptáculo GFCI Leviton de 20 amperios y 125V proporciona protección contra descargas eléctricas y cuenta con el estándar 5-20R. Su color café lo hace ideal para cualquier entorno. Cumple con las normativas de seguridad más estrictas.
| Item | Modular GFCI Receptacle |
|---|---|
| Grounding | Self-Grounding |
| Mounting Type | Flush |
| Material | Polycarbonate, Polybutylene Terephthalate |
| Number of Poles | 2 |
| Number of Wires | 3 |
| NEMA Configuration | 5-20R |
| Reset Type | Automatic |
| HP | 1.0 |
| Surge Suppression | No |
| Application Environment | Hospital Grade |
| Power Indicator | Yes |
| Weather Resistant | No |
| Amps | 20 |
| Type | Duplex Feed Through Self-Test |
| Voltage | 125VAC |
| Tamper Resistant | No |
| Wiring Method | Modular |
| Outlet Type | Decorator |
| Color | BROWN |
| Self-Testing | Yes |
| Length | 2-1/4 in |
| Height | 4-1/4 in |
| Width | 2 in |
| Application | Extra-Heavy Duty Hospital Grade |
| Wire | 3 |
| Device Type | Duplex Receptacle Outlet |
| Face Material | PBT |
| NEMA | WD-6, WD-1 |
| Feed-Through Current | 20 A |
| Flammability | Rated V-0 per UL 94 |
| Amperage | 20 A |
| Body Material | Polycarbonate |
| Grade | Extra Heavy-Duty Hospital Grade |
| Terminal Screws | Plated Steel |
| Screw Terminal Torque | 14-18 in-lbs |
| Short Circuit Current Rating | 2kA |
| Line Contacts | Brass |
| Ground Clips | Brass |
| At Rated Voltage | 1 HP |
| Function | GFCI |
| ANSI | C-73 |
| Operating Temperature | -35C to +66C |
| Pole | 2 |
| Strap Material | Galvanized Steel |
| Feature 3 | Power Indication |
| Terminal Clamp | Brass |
| Applicable Standards | UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596 |
| Termination | Side Wire, Modular and Back |
| NEMA Rating | NEMA 5-20R |
| Temperature Rating | -35 to 66 |
| Voltage Rating | 125 V |
| Dimensions | 4.05 in H x 1.74 in W x 1.46 in D |
| Terminal Type | Back/Side Wired/Modular |
| Package Quantity | 1 |
