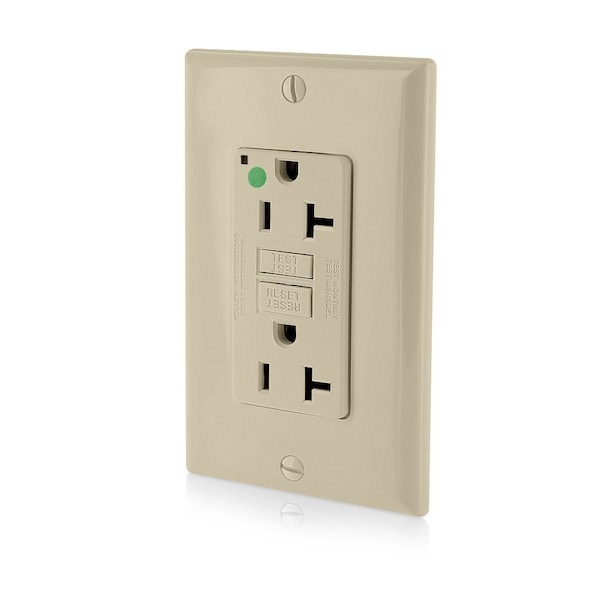

El Receptáculo GFCI Leviton de 20A y 125Vac en color marfil, proporciona protección contra descargas eléctricas y es ideal para áreas húmedas como baños y cocinas. Cumple con los estándares de seguridad y es fácil de instalar.
| Item | GFCI Receptacle |
|---|---|
| Grounding | Self-Grounding |
| Mounting Type | Flush |
| Material | Polycarbonate, PBT |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Amps | 20 |
| Reset Type | Automatic |
| Voltage | 125VAC |
| Weather Resistant | No |
| Self-Testing | Yes |
| Type | Self-test SmartLock Pro Slim GFCI |
| Wiring Method | Back, Side |
| Tamper Resistant | No |
| Power Indicator | Yes |
| Application Environment | Hospital Grade |
| Outlet Type | Decorator |
| HP | 1.0 |
| Surge Suppression | No |
| NEMA Configuration | 5-20R |
| Color | Ivory |
| Application | Extra-Heavy Duty Hospital Grade |
| Width | 1.69 in |
| Length | 2.88 in |
| Height | 4.69 in |
| Operating Temperature | -35C to +66C |
| Screw Terminal Torque | 14-18 in-lbs |
| Flammability | Rated V-0 per UL 94 |
| Device Type | Duplex Receptacle Outlet |
| Face Material | PBT |
| Feature | Wallplate Included|Power Indication |
| Terminal Accom. | 14-10 AWG solid or stranded |
| Strap Material | Galvanized Steel |
| Grounding Screw | Plated Steel |
| Body Material | Polycarbonate |
| Pole | 2 |
| Certification/Listing | UL, CSA, NOM-ANCE |
| Short Circuit Current Rating | 10KA |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Wire | 3 |
| ANSI | C-73 |
| Terminal Screws | Plated Steel |
| Terminal Clamp | Brass |
| Grade | Extra Heavy-Duty Hospital Grade |
| Line Contacts | Brass |
| Applicable Standards | UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596 |
| NEMA | WD-6, WD-1 |
| Termination | Back and Side Wire |
| Ground Clips | Brass |
| Amperage | 20 A |
| At Rated Voltage | 1 HP |
| Function | GFCI |
| Dimensions | 4.05 in H x 1.74 in W x 1.36 in D |
| Voltage Rating | 125 V |
| Temperature Rating | -35C to +66C °C |
| Terminal Type | Back/Side Wired |
| Package Quantity | 1 |
