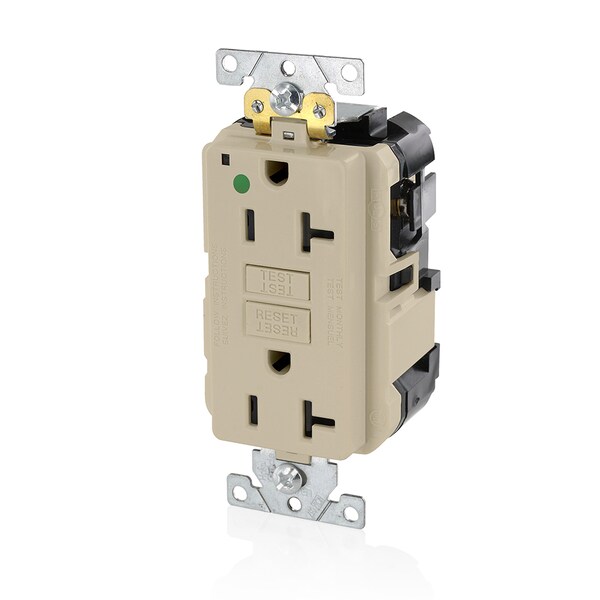

El Receptáculo GFCI de Leviton es perfecto para brindar protección contra descargas eléctricas en áreas húmedas o al aire libre. Con una capacidad de 20A y 125Vac, este receptáculo es ideal para uso residencial o comercial. Su diseño en color marfil lo hace ideal para combinar con cualquier decoración.
| Item | Modular GFCI Receptacle |
|---|---|
| Grounding | Self-Grounding |
| Mounting Type | Flush |
| Material | Polycarbonate, PBT |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Amps - Plugs and Receptacles | 20 |
| Application Environment | Hospital Grade |
| Weather Resistant | No |
| Item - Plugs and Receptacles | GFCI Receptacle |
| Mounting Type - Plugs and Receptacles | Flush |
| Wiring Method | Modular |
| Outlet Type | Decorator |
| Amps | 20 |
| Weather Resistant - Plugs and Receptacles | No |
| Tamper Resistant | No |
| Power Indicator | Yes |
| Color | Ivory |
| Color - Plugs and Receptacles | Ivory |
| NEMA Configuration | 5-20R |
| Type | Self-test SmartLock Pro Slim GFCI |
| Wiring Method - Plugs and Receptacles | Modular |
| Voltage | 125VAC |
| Surge Suppression | No |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Self-Testing | Yes |
| Voltage - Plugs and Receptacles | 125VAC |
| Reset Type | Automatic |
| HP | 1.0 |
| Application | Extra-Heavy Duty Hospital Grade |
| Height | 4-1/4 in |
| Length | 2-1/4 in |
| Width | 2 in |
| Amperage | 20 A |
| Grade | Extra Heavy-Duty Hospital Grade |
| Operating Temperature | -35C to +66C |
| Applicable Standards | UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596 |
| Short Circuit Current Rating | 2kA |
| Terminal Clamp | Brass |
| At Rated Voltage | 1 HP |
| Line Contacts | Brass |
| Flammability | Rated V-0 per UL 94 |
| Strap Material | Galvanized Steel |
| Feed-Through Current | 20 A |
| Screw Terminal Torque | 14-18 in-lbs |
| Termination | Side Wire, Modular and Back |
| ANSI | C-73 |
| Function | GFCI |
| Feature 3 | Power Indication |
| Face Material | PBT |
| Pole | 2 |
| Device Type | Duplex Receptacle Outlet |
| Wire | 3 |
| Ground Clips | Brass |
| NEMA | WD-6, WD-1 |
| Terminal Screws | Plated Steel |
| Body Material | Polycarbonate |
| Temperature Rating | -35C to +66C °C |
| Dimensions | 4.05 in H x 1.74 in W x 1.46 in D |
| Terminal Type | Back/Side Wired/Modular |
| Voltage Rating | 125 V |
| Package Quantity | 1 |
