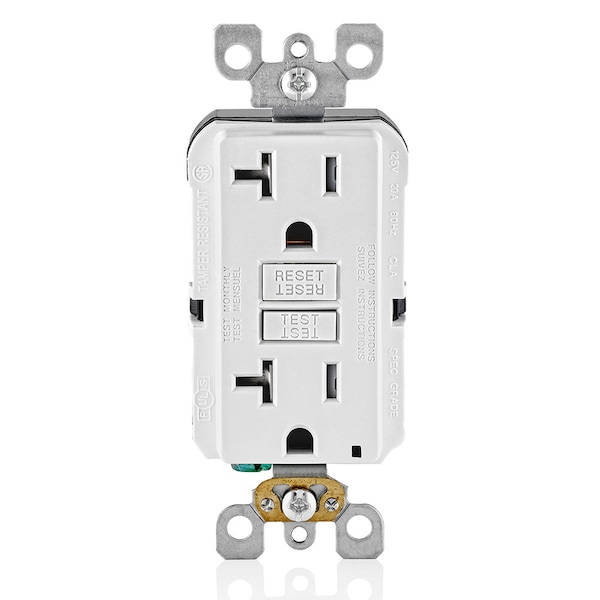

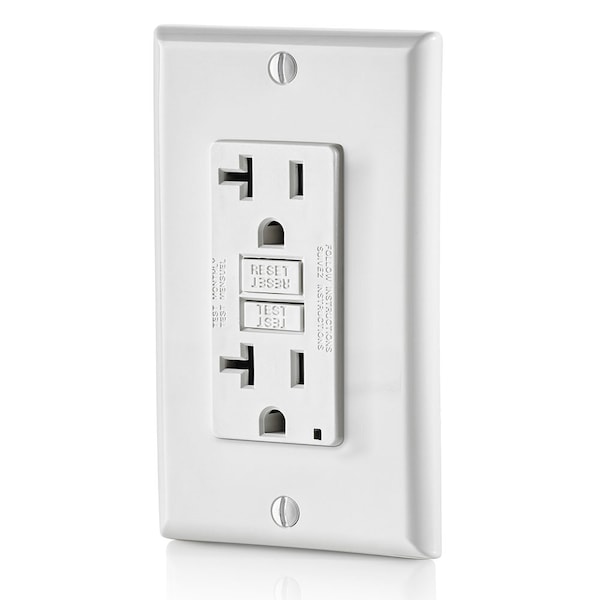

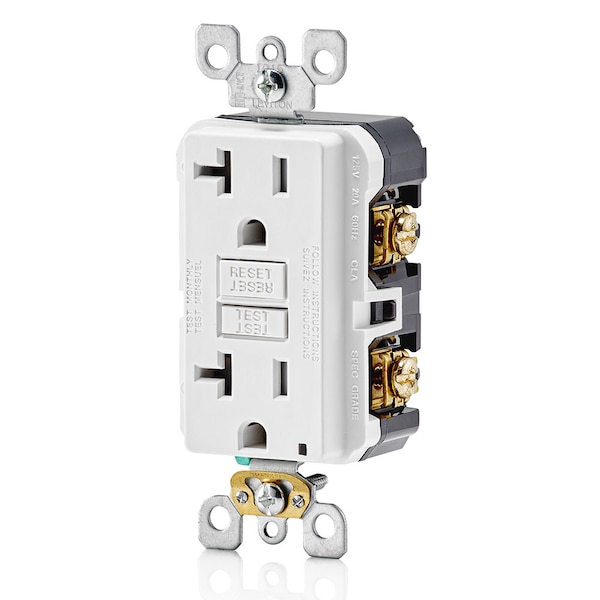

Este receptáculo GFCI de Leviton cuenta con una capacidad de 20 amperios y una tensión de 125V, con un diseño en color blanco. Cumple con los estándares de seguridad y es ideal para proteger contra descargas eléctricas en el hogar.
| Item | GFCI Receptacle |
|---|---|
| Grounding | Self Grounding |
| Mounting Type | Flush |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Standards | ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380 |
| Weather Resistant - Plugs and Receptacles | No |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| NEMA Configuration | 5-20R |
| Amps | 20 |
| Power Indicator | Yes |
| Self-Testing | Yes |
| Amps - Plugs and Receptacles | 20 |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Reset Type | Automatic |
| Amps - Plugs and Receptacles | 20 |
| Outlet Type | Decorator |
| Item - Plugs and Receptacles | GFCI Receptacle |
| Application Environment | Commercial |
| Color - Plugs and Receptacles | White |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Mounting Type - Plugs and Receptacles | Flush |
| Surge Suppression | No |
| Wiring Method | Back, Side |
| Color | White |
| Voltage | 125VAC |
| Type | Standard Duplex |
| HP | 1.0 |
| Voltage - Plugs and Receptacles | 125VAC |
| Weather Resistant | No |
| Tamper Resistant | Yes |
| Length | 2.88 in |
| Height | 4.69 in |
| Width | 1.69 in |
| CSA C22.2 No. 42 | Yes |
| Yoke | Zinc-Plated Steel |
| Terminal Screws | Plated Steel |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Grade | Residential/Commercial Specification Grade |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -35C to +66C |
| UL498 | Yes |
| Terminal Accom. | 14-10 AWG |
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
| Face Material | Thermoplastic |
| Fed Spec WC-596 | Yes |
| ANSI | C-73 |
| UL 943 | File E48380 |
| Pole | 2 |
| Trip Level | Class A, 5mA plus or minus 1mA |
| Strap Material | Galvanized Steel |
| Feature | Self-Test |
| Grounding Screw | Plated Steel |
| Wallplate | Included |
| Line Contacts | Brass |
| Wire | 3 |
| CSA-C22.2 No. 144.1-06 | File LR-57811 |
| Standards and Certifications | UL/CSA, NEMA WD6, NEMA WD1 |
| Termination | Back, Side |
| Amperage | 20 A |
| NEMA | 5-20R |
| Torque Range | 14-18 in.-lbs |
| Body Material | Polycarbonate |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Clamps | Brass |
| At Rated Voltage | 1 HP |
| Short Circuit Current Rating | 10KA |
| NEMA Rating | NEMA 5-20R |
| Temperature Rating | -35 to 66 °C |
| Voltage Rating | 125 V |
| Dimensions | 4.21 in H x 1.69 in W x 1.4 in D |
| Terminal Type | Back/Side Wired |
| Package Quantity | 1 |
