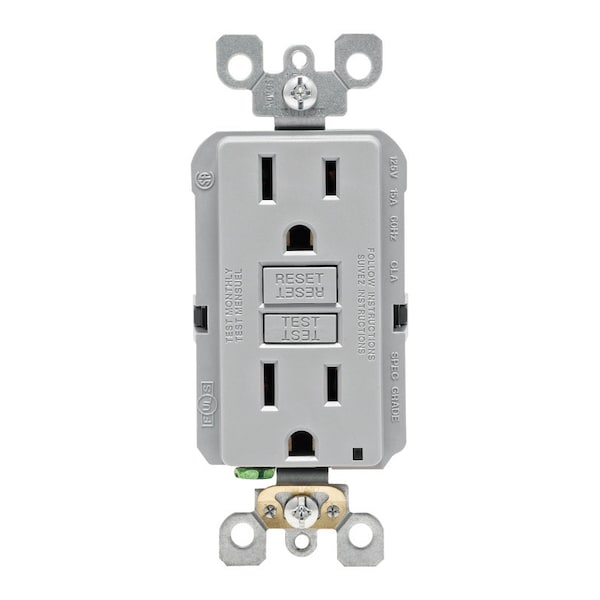

Gfci St Recept 15A Gray
| Type | Standard Duplex |
|---|---|
| Voltage | 125 VAC |
| Color | Gray |
| Terminal Screws | Steel |
| Strap Material | Galvanized Steel |
| Body Material | Polycarbonate |
| At Rated Voltage | 1 HP |
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
| Amperage | 15 A |
| Fed Spec WC-596 | Yes |
| Face Material | Thermoplastic |
| Termination | Back, Side |
| ANSI | C-73 |
| Feature | Self-Test |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Trip Level | Class A, 5mA plus or minus 1mA |
| UL498 | Yes |
| Terminal Accom. | 14-10 AWG |
| Grade | Residential/Commercial Specification Grade |
| Wire | 3 |
| Pole | 2 |
| Grounding | Self-Grounding |
| Yoke | Zinc-Plated Steel |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Clamps | Brass |
| NEMA | WD-6, 5-15R |
| Line Contacts | Brass Double-Wipe .031 Thick |
| Grounding Screw | Steel |
| Short Circuit Current Rating | 10KA |
| Operating Temperature | -35C to +66C |
| CSA-C22.2 No. 144.1-06 | File LR-57811 |
| Package Quantity | 1 |
