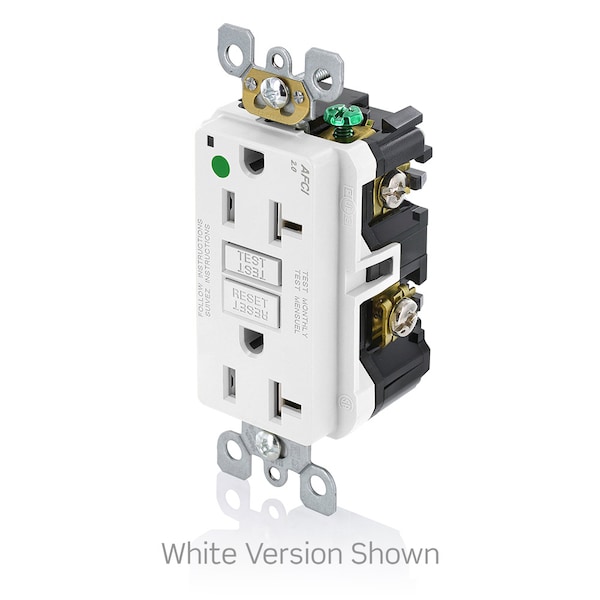

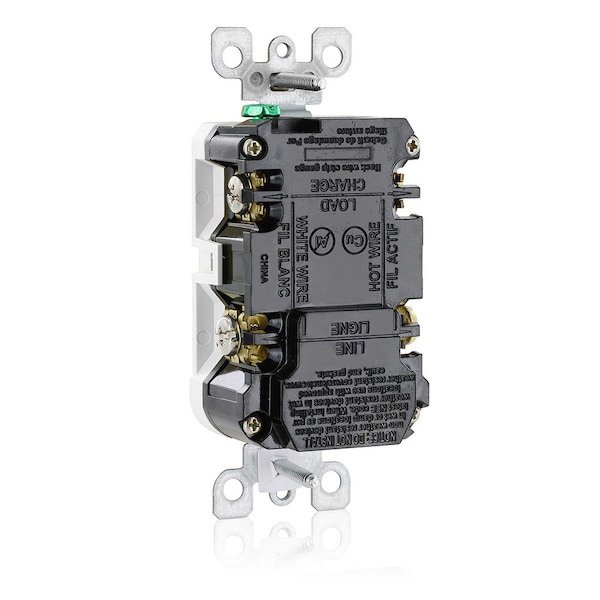

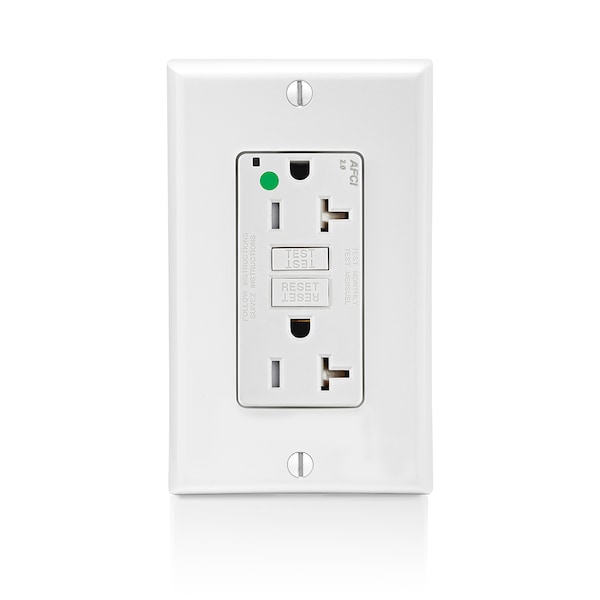

H.G. Duplex Afci Recept, White, 20 Amp
| Color | White |
|---|---|
| Height | 6-1/4 in |
| Length | 9-1/4 in |
| Voltage | 125 VAC |
| Application | Hospital |
| Type | Arc Fault Circuit Interrupter |
| Grounding Screw | Steel |
| Amperage | 20 A |
| Wire | 3 |
| Pole | 2 |
| Terminal Clamp | Steel |
| Face Material | PBT |
| Terminal Accom. | 14-10 AWG solid or stranded |
| At Rated Voltage | 1 HP |
| Termination | Back, Side Wire |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Terminal Screws | Steel |
| ANSI | C-73 |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Applicable Standards | UL 498 and 1699A, CSA C22.2 No. 42 and TIL No. M-02A, FedSpec W-C 596 |
| Body Material | Polycarbonate |
| Flammability | Rated V-0 per UL 94 |
| Ground Clips | Brass |
| Certification/Listing | NOM-ANCE, CSA, UL |
| Feature | Wallplate Included|Tamper-Resistant|Power Indication |
| NEMA | WD-6, WD-1 |
| Device Type | Duplex Receptacle Outlet |
| Grounding | Self-Grounding |
| Operating Temperature | -35C to +66C |
| Function | AFCI |
| Line Contacts | Brass Double Wipe .031 Thick |
| Grade | Heavy-Duty Hospital Grade |
| Screw Terminal Torque | 14-18 in-lbs |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Strap Material | Steel |
| Standard | UL 498 and 1699A |
| Voltage Rating | 125 V |
| Package Quantity | 1 |
