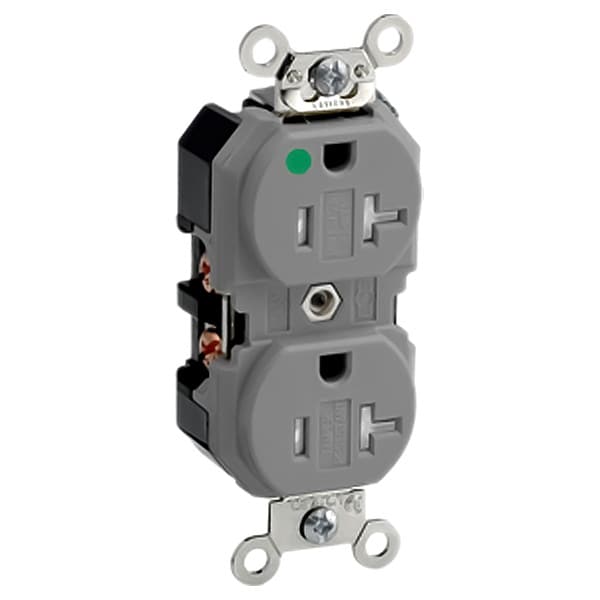

Hospital Grade Receptacle, Gray, Nylon,
| Item | Hospital Grade Receptacle |
|---|---|
| Number of Poles | 2 |
| Number of Wires | 3 |
| NEMA Enclosure Rating | 5 |
| Minimum Wire Size | 14 AWG |
| Maximum Operating Temperature | 140 deg F |
| Overall Depth | 1 in |
| GFCI | Yes |
| Face Diameter | Not Applicable |
| Phase | Single |
| Housing Color | Gray |
| Housing Material | Nylon |
| Contact Material | Brass |
| Mount Hole Center-to-Center Height | 3.3 in |
| Grounding | Grounded |
| Standards | ANSI, CSA C22.2, CSA Certified, RoHS Compliant, UL Listed |
| Resistance Properties | Tamper Resistant |
| Receptacle Type | Duplex |
| IP Rating | Not Rated |
| NEMA Receptacle Configuration | 5-20R |
| Maximum Wire Size | 10 AWG |
| Horsepower Rating | 1 HP |
| Number of Gangs | 1 |
| Current Rating | 20 A |
| Voltage Rating | 125V AC |
| Cover Type | No Cover |
| Wire Connection Type | Screw Terminals |
| For Environment | Industrial |
| Grade | Hospital Grade |
| Visual Indicator Lights | None |
| Wiring Method | Back, Side |
| IEC Configuration | C73 |
| Minimum Operating Temperature | -40 deg F |
| Face Plate Width | 1-1/2 in |
| Number of Outlets | 2 |
| Market | Commercial, Industrial |
| Reset Type | Not Applicable |
| Flange Shape | Not Applicable |
| Flange Type | Non-Flanged |
| Hazardous Location Specification | Not Applicable |
| Hub Type | Feed Through |
| Surge Protection | No |
| Polarized | Yes |
| Mount Type | Flush |
| UL 94 Flammability Rating | V-0 |
| Shrouded | Yes |
| Connection Orientation | Straight |
| AFCI | No |
| Package Quantity | 1 |
