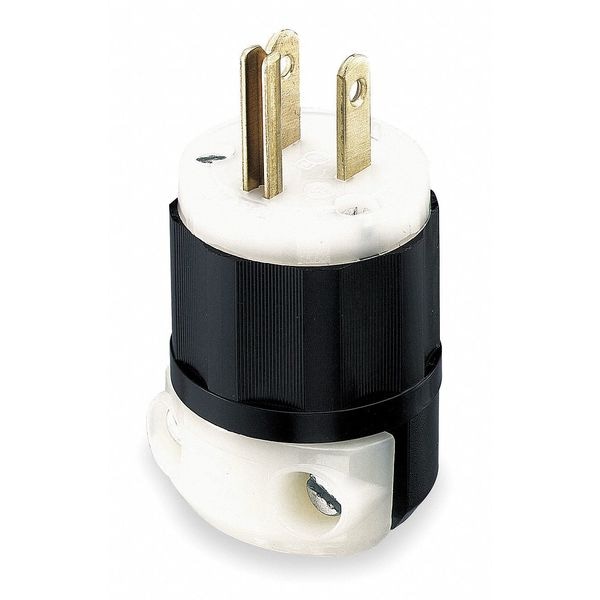

Clavija recta industrial, 2 polos, 15 A, 125V CA, 5-15P, terminal de tornillo, negro/blanco.
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| Number of Wires | 3 |
| Color | Black, White |
| Number of Poles | 2 |
| Standards | ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13399, UL Federal Specification WC-596 File E13393 |
| Color - Plugs and Receptacles | Black, White |
| IP Rating | Not Rated |
| Material | Impact Modified Nylon |
| Grade | General Use |
| NEMA Rating | Not Rated |
| Special Features | Chemical Resistant, Resists Impact, Rough Use, Sunlight |
| Phase | Single |
| Cord Size | 0.23 to 0.685 in |
| NEMA Enclosure Rating | Not Rated |
| UL 94 Flammability Rating | V-2 |
| For Environment | Dry |
| Market | Industrial |
| Overall Length | 2.81 in |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| For Maximum Cable Diameter | 0.685 in |
| Blade Material | Brass |
| Grounding | Grounded |
| Minimum Operating Temperature | -40 deg F |
| Polarized | Yes |
| NEMA Plug Configuration | 5-15P |
| Horsepower Rating | 0.5 HP |
| Wire Connection Type | Screw Terminals |
| Maximum Operating Temperature | 140 deg F |
| Insulation Material | Nylon |
| Outside Diameter | 1.53 in |
| Housing Material | Impact Modified Nylon |
| Connection Orientation | Straight |
| Voltage Rating | 125V AC |
| Housing Color | Black, White |
| Face Diameter | 1.39 in |
| Shrouded | No |
| Number of Blades | 3 |
| Maximum Wire Size | 10 AWG |
| For Minimum Cable Diameter | 0.23 in |
| Hazardous Location Specification | Not Applicable |
| Current Rating | 15 A |
| Minimum Wire Size | 18 AWG |
| Body Length | 1.98 in |
| Package Quantity | 1 |
