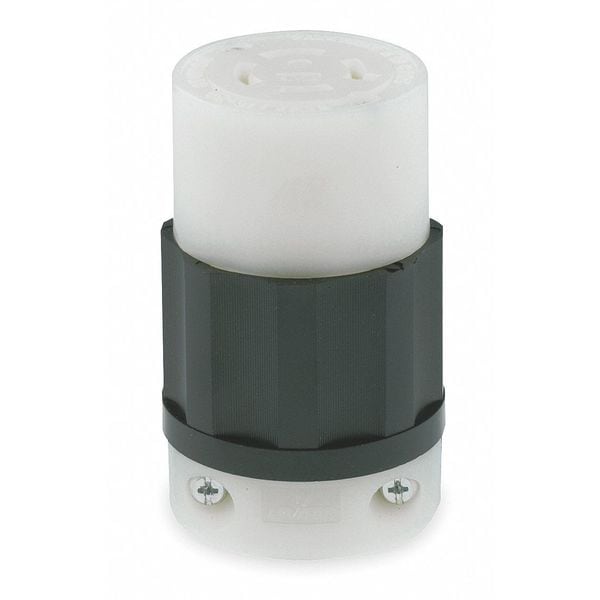

Locking Connector, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals
| Item | Locking Connector |
|---|---|
| NEMA Receptacle Configuration | L15-20R |
| Current Rating | 20 A |
| Voltage Rating | 250V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Connection Orientation | Straight |
| Shrouded | No |
| Grounding | Grounded |
| Housing Color | Black |
| Cap Type | No Cap |
| For Maximum Cable Diameter | 0.775 in |
| For Minimum Cable Diameter | 0.56 in |
| IP Rating | Not Rated |
| Standards | RoHS Compliant |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Grade | Federal Specification |
| NEMA Plug Configuration - Plugs and Receptacles | L15-20R |
| Outside Diameter | 2.23 in |
| Polarized | Yes |
| Market | Industrial |
| Face Diameter | 1.97 in |
| Minimum Wire Size | 18 AWG |
| Hazardous Location Specification | Not Applicable |
| NEMA Enclosure Rating | Not Rated |
| Maximum Wire Size | 10 AWG |
| Overall Length | 3.78 in |
| Midget Locking | No |
| Contact Material | Brass |
| Housing Material | Nylon |
| Voltage - Plugs and Receptacles | 250 V AC |
| NEMA Rating | L15-20R |
| Color - Plugs and Receptacles | Black |
| NEMA Configuration | L15-20 |
| Package Quantity | 1 |
