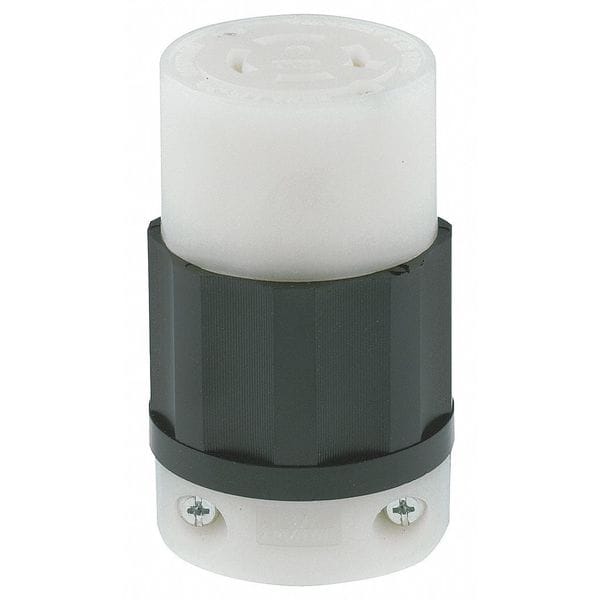

Locking Connector, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Screw Terminals
| Item | Locking Connector |
|---|---|
| NEMA Receptacle Configuration | L16-20R |
| Current Rating | 20 A |
| Voltage Rating | 480V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Connection Orientation | Straight |
| Shrouded | No |
| Grounding | Grounded |
| Housing Color | Black, White |
| Cap Type | No Cap |
| For Maximum Cable Diameter | 0.775 in |
| For Minimum Cable Diameter | 0.56 in |
| IP Rating | Not Rated |
| Standards | ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13393, UL 94, UL Federal Specification WC-596 File E13393 |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Material | Impact Modified Nylon |
| Grade | Industrial |
| Amps | 20 |
| Body Material | Impact Modified Nylon |
| Face Diameter | 1.97 in |
| Maximum Wire Size | 10 AWG |
| Polarized | Yes |
| UL 94 Flammability Rating | HB |
| For Environment | Dry |
| Overall Length | 3.78 in |
| Market | Industrial |
| Hazardous Location Specification | Not Applicable |
| Contact Material | Brass |
| Outside Diameter | 2.23 in |
| NEMA Enclosure Rating | Not Rated |
| Insulation Material | Nylon |
| Maximum Operating Temperature | 60 deg C |
| Midget Locking | No |
| Minimum Wire Size | 14 AWG |
| Housing Material | Nylon |
| Minimum Operating Temperature | -40 deg C |
| Horsepower Rating | 5 HP |
| Flame Resistant | Rated HB or better UL94 |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Dielectric Strength | Withstands 2000V per UL498 |
| Environment | Dry |
| Package Quantity | 1 |
