Locking Connector, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals
| Item | Locking Connector |
|---|---|
| NEMA Receptacle Configuration | L21-30R |
| Current Rating | 30 A |
| Voltage Rating | 120/208V AC |
| Phase | Three |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Connection Orientation | Straight |
| Shrouded | Yes |
| Grounding | Grounded |
| Housing Color | Black, White |
| Cap Type | No Cap |
| For Maximum Cable Diameter | 1.15 in |
| IP Rating | Not Rated |
| Standards | UL Fed Spec WC-596/UL498/CSA C22.2 No. 42/NOM/NEMA/ANSI |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Corrosion Resistant | No |
| Amps | 30 |
| Cord Size | 0.63 to 1.15 in |
| Grade | Industrial |
| Body Material | Impact Modified Nylon |
| Material | Impact Modified Nylon |
| Dielectric Strength | Withstands 2000V per UL498 |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Environment | Dry |
| Flame Resistant | Rated HB or better UL94 |
| Length | 11.813 in |
| Wire Size | 18-10 AWG |
| Horsepower | 3 |
| Mounting | Cable |
| Connection | Screw Terminal |
| Series | Black & White |
| Amperage Rating | 30 A |
| Height | 4.938 in |
| Cord Diameter | 0.595 to 1.15 in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA Certified (File LR-406);UL Fed Spec WC-596 (File E13393);UL498 (File E13393) |

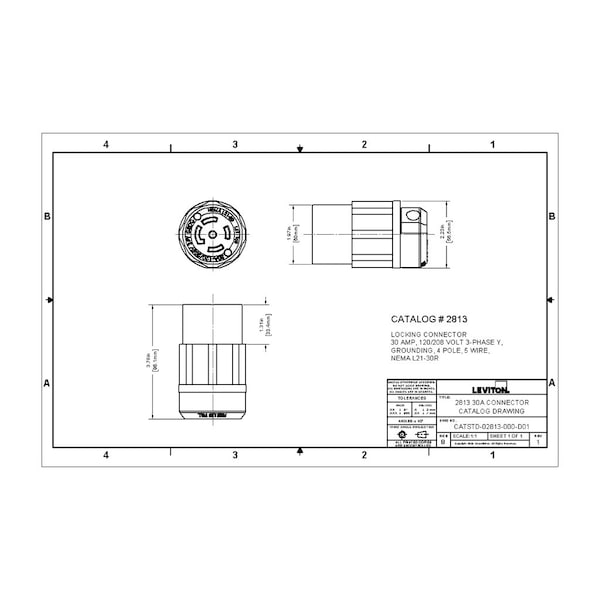

| Dimensions | 2.22 in Dia x 3.78 in L |
| Cord Type | S;SO;ST;STO;STW;STW-A;STOW-A;SOO;STOO |
| Environmental Conditions | Flammability |
| Temperature Rating | -40 to 60 °C |
| Package Quantity | 1 |
