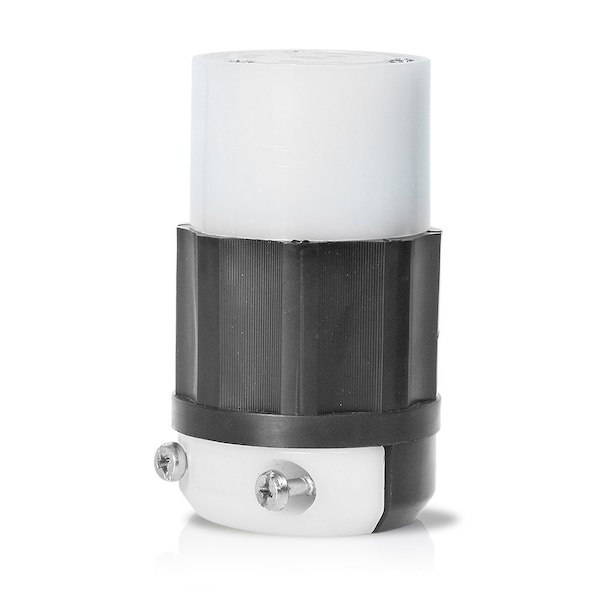

Locking Connector, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals
| Item | Locking Connector |
|---|---|
| NEMA Receptacle Configuration | L5-20R |
| Current Rating | 20 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Connection Orientation | Straight |
| Shrouded | No |
| Grounding | Grounded |
| Housing Color | Black, White |
| Cap Type | No Cap |
| For Maximum Cable Diameter | 0.72 in |
| For Minimum Cable Diameter | 0.385 in |
| IP Rating | Not Rated |
| Standards | ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13393, UL 94, UL Federal Specification WC-596 File E13393 |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| NEMA Plug Configuration - Plugs and Receptacles | L5-20R |
| Market | Industrial |
| Insulation Material | Nylon |
| Face Diameter | 1.84 in |
| Outside Diameter | 2.08 in |
| Overall Length | 3.56 in |
| Material | Impact Modified Nylon |
| Maximum Wire Size | 10 AWG |
| Horsepower Rating | 1 HP |
| Minimum Wire Size | 16 AWG |
| Hazardous Location Specification | Not Applicable |
| Contact Material | Brass |
| NEMA Enclosure Rating | Not Rated |
| Minimum Operating Temperature | -40 deg C |
| Housing Material | Nylon |
| UL 94 Flammability Rating | HB |
| Maximum Operating Temperature | 60 deg C |
| Grade | Federal Specification |
| Polarized | Yes |
| Midget Locking | No |
| Voltage - Plugs and Receptacles | 125 V AC |
| NEMA Rating | L5-20R |
| Color - Plugs and Receptacles | Black-White |
| NEMA Configuration | L5-20 |
| Package Quantity | 1 |
