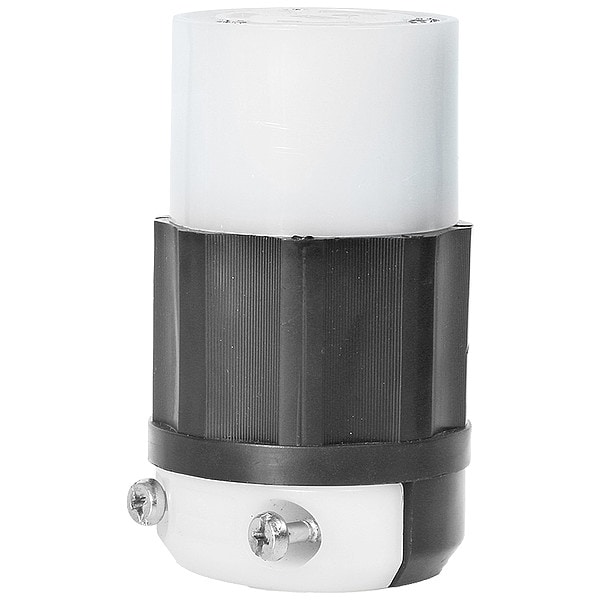

Locking Connector, L8-30R, 30 A, 480V AC, Single Phase, 2 Pole, Screw Terminals
| Item | Locking Connector |
|---|---|
| NEMA Receptacle Configuration | L8-30R |
| Current Rating | 30 A |
| Voltage Rating | 480V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Connection Orientation | Straight |
| Shrouded | No |
| Grounding | Grounded |
| Housing Color | Black, White |
| Cap Type | No Cap |
| For Maximum Cable Diameter | 0.93 in |
| For Minimum Cable Diameter | 0.385 in |
| IP Rating | Not Rated |
| Standards | ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13393, UL 94, UL Federal Specification WC-596 File E13393 |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Material | Impact Modified Nylon |
| Amps | 30 |
| Body Material | Impact Modified Nylon |
| NEMA Plug Configuration - Plugs and Receptacles | L8-30R |
| Grade | Federal Specification |
| UL 94 Flammability Rating | HB |
| Minimum Wire Size | 16 AWG |
| Minimum Operating Temperature | -40 deg C |
| Market | Industrial |
| For Environment | Dry |
| Housing Material | Nylon |
| Polarized | Yes |
| NEMA Enclosure Rating | Not Rated |
| Contact Material | Brass |
| Horsepower Rating | 5 HP |
| Maximum Wire Size | 8 AWG |
| Overall Length | 3.56 in |
| Maximum Operating Temperature | 60 deg C |
| Outside Diameter | 2.08 in |
| Hazardous Location Specification | Not Applicable |
| Midget Locking | No |
| Insulation Material | Nylon |
| Face Diameter | 1.84 in |
| Flame Resistant | Rated HB or better UL94 |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Dielectric Strength | Withstands 2000V per UL498 |
| Environment | Dry |
| NEMA Configuration | L8-30 |
| Color - Plugs and Receptacles | Black-White |
| Voltage - Plugs and Receptacles | 480 V AC |
| NEMA Rating | L8-30R |
| Package Quantity | 1 |
