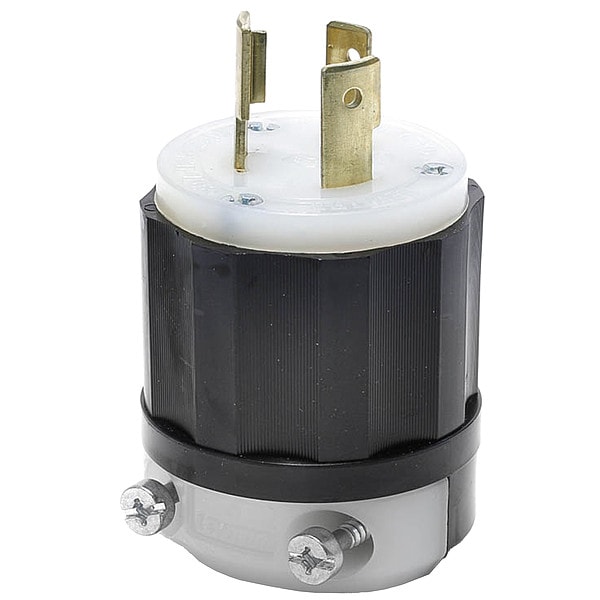

Locking Plug, L10-20P, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals
| Item | Locking Plug |
|---|---|
| NEMA Plug Configuration | L10-20P |
| Current Rating | 20 A |
| Voltage Rating | 125/250V AC |
| Phase | Single |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Number of Blades | 3 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Connection Orientation | Straight |
| Shrouded | No |
| Grounding | Non-Grounded |
| Housing Color | Black, White |
| For Maximum Cable Diameter | 0.78 in |
| For Minimum Cable Diameter | 0.385 in |
| IP Rating | Not Rated |
| Standards | ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498 File E13393, UL Federal Specification WC-596 File E13393 |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Body Material | Nylon |
| Grade | Federal Specification |
| Cord Size | 0.385 to 0.78 in |
| Special Features | Chemical Resistant, Resists Impact, Rough Use, Sunlight |
| Material | Impact Modified Nylon |
| Horsepower Rating | 1 HP |
| Market | Industrial |
| Outside Diameter | 2.08 in |
| UL 94 Flammability Rating | HB |
| Blade Material | Brass |
| Minimum Operating Temperature | -40 deg C |
| For Environment | Dry |
| Polarized | Yes |
| Face Diameter | 1.84 in |
| Maximum Operating Temperature | 60 deg C |
| Midget Locking | No |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 16 AWG |
| Hazardous Location Specification | Not Applicable |
| Housing Material | Nylon |
| Body Length | 2.47 in |
| Flammability | Rated HB or better UL94 |
| Operating Temp. | -40A deg C to 60A deg C |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| NEMA Plug Configuration - Plugs and Receptacles | L10-20P |
| Item - Plugs and Receptacles | Locking Plug |
| Voltage - Plugs and Receptacles | 125/250VAC |
| Amps - Plugs and Receptacles | 20A |
| HP | 1 |
| Color - Plugs and Receptacles | Black, White |
| Grade - Plugs and Receptacles | Industrial |
| Package Quantity | 1 |
