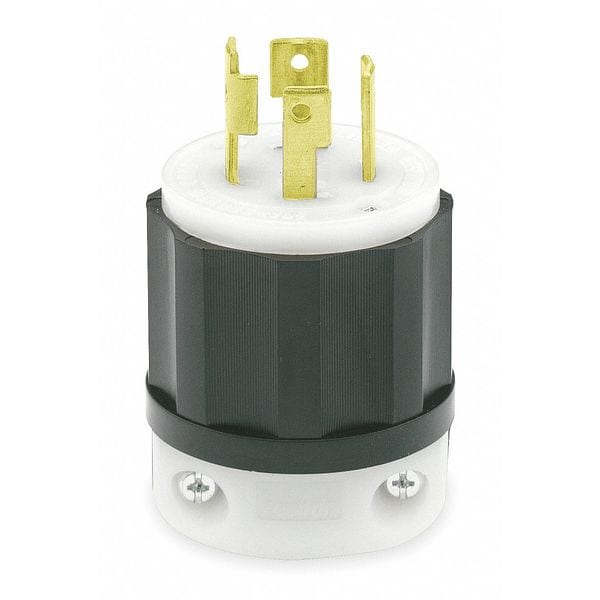

Locking Plug, L15-30P, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals
| Item | Locking Plug |
|---|---|
| NEMA Plug Configuration | L15-30P |
| Current Rating | 30 A |
| Voltage Rating | 250V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Number of Blades | 4 |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Connection Orientation | Straight |
| Shrouded | No |
| Grounding | Grounded |
| Housing Color | Black, White |
| For Maximum Cable Diameter | 1.05 in |
| For Minimum Cable Diameter | 0.56 in |
| IP Rating | Not Rated |
| Standards | ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498 File E13393, UL Federal Specification WC-596 File E13393 |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Grade | Federal Specification |
| Body Material | Nylon |
| Special Features | Chemical Resistant, Long Lasting Reliability, Resists Impact, Rough Use, Sunlight, Unique Cord Clamp |
| Material | Impact Modified Nylon |
| Cord Size | 0.56 to 1.05 in |
| Body Length | 2.7 in |
| Minimum Operating Temperature | -40 deg C |
| Housing Material | Nylon |
| Market | Industrial |
| Blade Material | Brass |
| Polarized | Yes |
| Hazardous Location Specification | Not Applicable |
| Outside Diameter | 2.23 in |
| Overall Length | 3.7 in |
| For Environment | Dry |
| Horsepower Rating | 3 HP |
| UL 94 Flammability Rating | HB |
| Maximum Operating Temperature | 60 deg C |
| Midget Locking | No |
| Minimum Wire Size | 14 AWG |
| Face Diameter | 1.97 in |
| Maximum Wire Size | 8 AWG |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Operating Temp. | -40A deg C to 60A deg C |
| Flammability | Rated HB or better UL94 |
| Color - Plugs and Receptacles | Black, White |
| NEMA Plug Configuration - Plugs and Receptacles | L15-30P |
| HP | 3 |
| Item - Plugs and Receptacles | Locking Plug |
| Voltage - Plugs and Receptacles | 250VAC |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 30A |
| Package Quantity | 1 |
