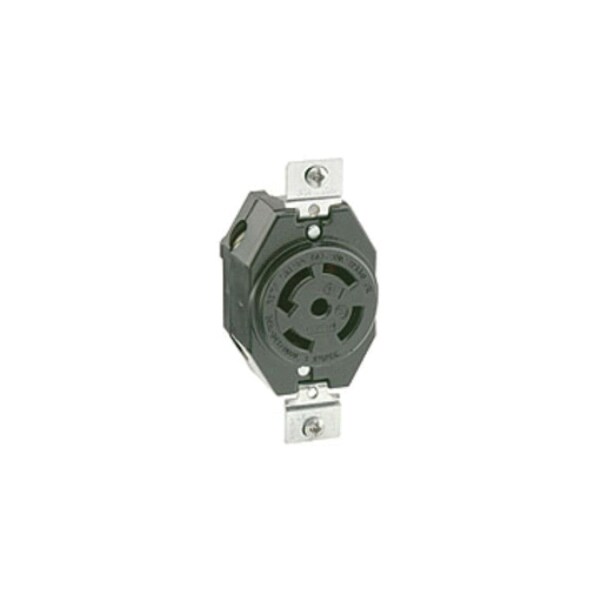

Locking Receptacle, L22-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals
| Item | Locking Receptacle |
|---|---|
| NEMA Receptacle Configuration | L22-30R |
| Current Rating | 30 A |
| Voltage Rating | 277/480V AC |
| Phase | Three |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Wire Connection Type | Screw Terminals |
| Housing Color | Black |
| Cover Type | No Cover |
| Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No.42;UL Fed Spec WC-596 (File E13399);UL Listed 498 |
| Grade | Industrial |
| Body Material | Nylon |
| Material | PBT |
| Base Material | Nylon |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Operating Temp. | -40A Deg C to 60A Deg C |
| Wire Size | 14-8 AWG |
| Flammability | Rated V-0 per UL 94 |
| Mounting | Box |
| Width | 1.88 in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No.42;UL Fed Spec WC-596 (File E13399);UL Listed 498 |
| Connection | Back Wired;Side Wired |
| Horsepower | 10 |
| Dimensions | 3.62 in x 1.7 in x 1.43 in |
| Application | Commercial |
| Environmental Conditions | Flammability |
| Length | 1.81 in |
| Dielectric Strength | 2000 (Min.) V |
| Height | 4.12 in |
| Temperature Rating | -40 to +60 °C |
| Package Quantity | 1 |
