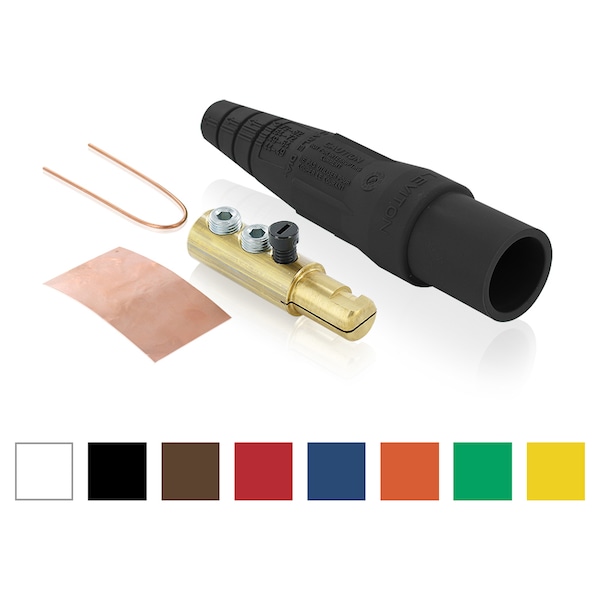

Este conector macho de color rojo es ideal para cables de 2-2/0, con capacidad de 300 amperios en corriente alterna o continua. Cuenta con diseño cónico para un ajuste seguro y confiable.
| Item | Connector |
|---|---|
| Type | 1-Pole Cam Type Taper Nose |
| Series | 15 |
| Terminal Connection | Double Set Screw |
| Male/Female | Male |
| Current Rating | 300 A |
| Voltage Rating | 600VAC/250VDC |
| NEMA Rating | 3R, 4X, 12 |
| Amps AC/DC | 300 AC/DC |
| Material | Thermoplastic Elastomer |
| Conductor Material | Solid Brass |
| Standards | UL & CSA |
| Fits | Female Plug |
| Cable Range | 2 to 2/0 |
| Color | Red |
| Single Pole Device Style | Taper Nose |
| Application | For power distribution applications such as construction sites, mining operations, welding, cel |
| Length | 8 in |
| Height | 7-1/4 in |
| Width | 11 in |
| Housing Material | Santoprene TPV |
| Amperage Rating | 300 A |
| Mounting Type | Threaded |
| Dimensions | 1.72 in Dia x 7.01 in L |
| Temperature Rating | 86 |
| Number of Poles | 1 |
| Contact Material | Brass |
| Package Quantity | 1 |
