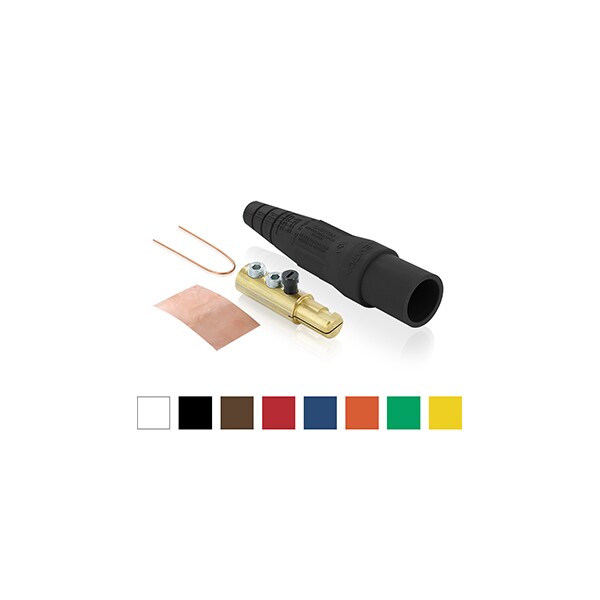

Conector macho Leviton de alta calidad, diseñado para aplicaciones de 300A de corriente alterna y corriente continua. Fabricado con materiales resistentes y duraderos para garantizar un rendimiento óptimo.
| Item | Connector |
|---|---|
| Type | Cam-Type |
| Series | 15 |
| Terminal Connection | Double Set Screw |
| Male/Female | Male |
| Current Rating | 300 A |
| Voltage Rating | 600VAC/250VDC |
| NEMA Rating | 3R, 4X, 12 |
| Standards | UL & CSA |
| Color | Orange |
| Material | Thermoplastic Elastomer |
| Conductor Material | Solid Brass |
| Amps AC/DC | 300 AC/DC |
| Cable Range | 2 to 2/0 |
| Single Pole Device Style | Taper Nose |
| Fits | Female Plug |
| Height | 7-1/4 in |
| Length | 8 in |
| Application | For power distribution applications such as construction sites, mining operations, welding, cel |
| Width | 11 in |
| Standard | UL-1691 |
| Package Quantity | 1 |
