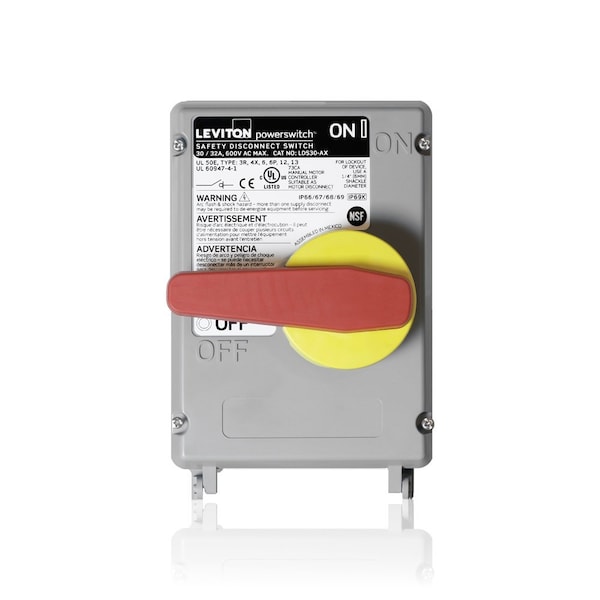

Interruptor de desconexión encapsulado no fusible, 30 A, 600V CA, 3 polos.
| Item | Enclosed Disconnect Switch |
|---|---|
| Protection Method | Nonfusible |
| Amps | 30 |
| Voltage | 600 V AC |
| Phase | 1/3 |
| Material | Polybutylene Terephthalate/Polycarbonate |
| Number of Poles | 3 |
| Height | 5-3/8 in |
| Type | Non-Fused |
| Enclosure Type | IP68, IP69, IP69K, NEMA 3R / 4/4X / 6/6P / 12/13/IP66/IP67 |
| Enclosure material | PBT+PC |
| Operating Temperature | -40°C to 75°C |
| Dielectric Voltage | 1000 V plus twice rated voltage for 1 minute |
| Amperage | 0.9375 A |
| CE | CE Marked |
| Mounting Feet | PBT+PC |
| Short Circuit Current Rating | 10 kA |
| ISO | 20653 |
| Endurance | 6,000 operating cycles at rated current and voltage |
| Handle Material | PBT+PC with TPE Overmold |
| UV Resistance | Exposed materials are UV stabilized |
| NEMA | 250 |
| Terminal Accom. | 18 - 8 AWG |
| Enclosure Screws | Stainless Steel |
| Gasket | Silicone Rubber |
| Ingress Protection | NEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K |
| cULus | cULus UL60947-4-1A (Suitable as Motor Disconnect) |
| IEC | 60529 |
| Application | Industrial Applications |
| Length | 8-1/2 in |
| Voltage Rating | 600 V |
| Horsepower | 5 hp, 25 hp |
| Actuator Type | Handle |
| Standard | UL98 |
| Dimensions | 7 in x 5 in x 3 in |
| Mounting Type | Feet |
| Temperature Rating | -40 to 75 |
| Package Quantity | 1 |
