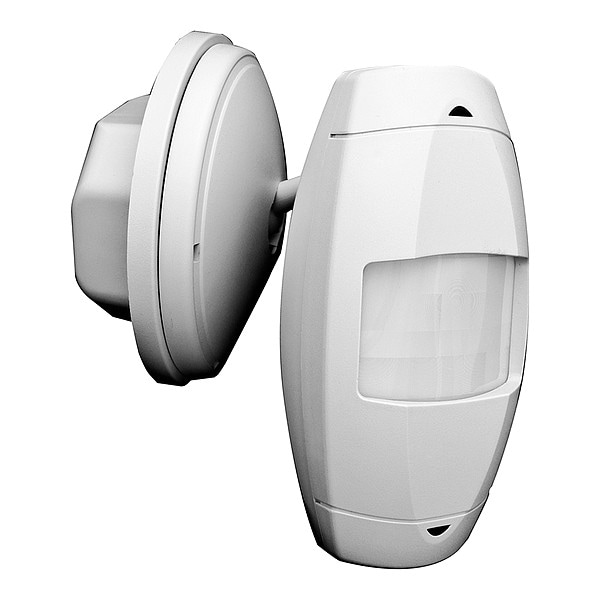

Sensor de movimiento pasivo infrarrojo (PIR) para interiores, voltaje de 120-277V CA, con alcance de detección de hasta 1,400 pies cuadrados.
| Use With - Motion Sensing and Dimming | Electronic Ballast, Incandescent Ballast, Magnetic Fluorescent Ballast |
|---|---|
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Sensing Technology | Passive Infrared |
| Installation Location - Motion Sensor | Wall |
| Coverage at Suggested Mounting Height | 1,400 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 120 to 277V AC |
| Color - Motion Sensing and Dimming | White |
| Time Delay Adjustment Method - Motion Sensor | Automatic |
| Time Delay - Motion Sensor | 30 sec to 30 min |
| Includes | Power Base Adapter |
| Sensor Type | Wall Mount |
| Voltage | 120-277 VAC |
| Item | Occupancy Sensor |
| Color | White |
| Communication Method | Hard Wired |
| Suggested Mounting Height - Motion Sensor | 10 ft |
| Description/Special Features | Ambient Light Recognition, Maximum Reliability, Non-Volatile Memory, Walk-Through |
| Max. Capacity @ 120VAC | 15 A (Incandescent Ballast, Electronic Ballast, 3/4 HP, Magnetic Fluorescent Ballast) |
| Standards | CEC Title 20/24 Complaint |
| Lighting Technology | Fluorescent, Incandescent |
| Installation Location | Wall |
| Minimum Time Delay | 30 sec |
| Load Rating @ 120V AC | 15A (Incandescent, Electronic, Magnetic Fluorescent Ballast, 3/4 HP Motor) |
| Maximum Time Delay | 30 min |
| Series | ODC; ODW |
| Coverage Angle | 360 deg |
| Minimum Operating Temperature | 32 deg F |
| Sensor Operation | Occupancy |
| Time Delay Adjustment Method | Automatic |
| Maximum Coverage Area | 1,400 sq ft |
| Manufacturer Warranty | 5 yr |
| Load Rating @ 480V AC | Not Applicable |
| Maximum Operating Temperature | 104 deg F |
| Maximum Mounting Height | 10 ft |
| Minimum Mounting Height | Not Applicable |
| Neutral Wire Connection | Required |
| Technology | Passive Infrared |
| Coverage (Sq.Ft.) | 100FT x 14FT @ 10FT Height |
| Frequency | 50/60Hz |
| Package Quantity | 1 |
