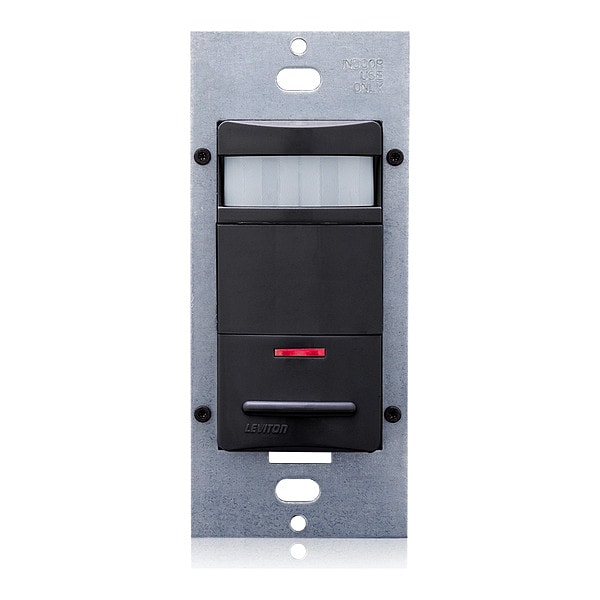

Sensor de movimiento PIR para corriente alterna de 120-277V, color negro.
| Use With - Motion Sensing and Dimming | 1/4 HP Motor |
|---|---|
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Sensing Technology | Passive Infrared |
| Installation Location - Motion Sensor | Wall Switch Box |
| Coverage at Suggested Mounting Height | 2,100 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 120 to 277V AC |
| Color - Motion Sensing and Dimming | Black |
| Time Delay Adjustment Method - Motion Sensor | Adjustable |
| Time Delay - Motion Sensor | 30 sec to 30 min |
| Includes | Photocell |
| Sensor Type | Occupancy |
| Lighting Technology | Incandescent |
| Standards | ASHRAE 90.1, CSA Certified, FCC Approved, NOM, RoHS Compliant, Title 24, Part 6, UL Listed |
| Item | Occupancy Sensor |
| Communication Method | Hard Wired |
| Max. Capacity @ 277VAC | 2700VA (Fluorescent) |
| Color | Black |
| Voltage | 120-277 VAC |
| Coverage Angle - Motion Sensor | 180 deg |
| Description/Special Features | Convenient Pushbutton Provides Manual-On/Off Light Switching At Any Time, Exclusive Leviton H.I.S. Circuitry. Specifically Designed to Handle Today's High Inrush Electronic Ballast Loads and Offer Unmatched Durability and Service, False Detection Circuitry, Fits in Standard Wallbox and Replaces Single-Pole Wall Switch. Gangable With Other Units, Horizontal Field-Of-View May be Adjusted Between 180 Degrees and 60 Degrees of Arc by Using Integral Blinders Located on Either Side of the Lens. No Masking Tape Required, Light Sensor Enables the Load Hold-Off Feature Once Level Has Been Set, Low-Profile Design Eliminates Obtrusive "Scanning-Device" Look. Elegant Decora Styling Complements Any Interior, Presentation Mode Feature for Slide or Film Presentations Allows Push Buttons to Turn Lights Off and Keep Them Off While the Room is Occupied, Relay Switches At the Zero Crossing Point of the Ac Power Curve to Ensure Maximum Contact Life and Compatibility With Electronic Ballasts, Segmented Fresnel Lens Provides Optimum Sensitivity and Performance. Designed With An Extensive "Minor Motion" Area Where Even Slight Body Movements will be Detected, Time Delay Adjustment for Delayed-Off Time Set-Tings of 30 Seconds (for Walking Test), 10 Minutes, 20 Minutes, and 30 Minutes. Allows Customized Adjustments to Maximize Energy Savings, to Comply With T24, Red Led Indicator Light Flashes When Sensor Detects Motion to Verify Detection is Active, Uses Decora Wallplates and Coordinates With Leviton's Popular Line of Decora Wiring Devices, Vacancy Confirmation, Vandal Resistant PIR Lens |
| Time Delay | 30s-30m |
| Max. Capacity @ 120VAC | 1200V (Fluorescent), 800W (Incandescent) |
| Compatible with Series | Switching Only |
| Load Rating @ 277V AC | 2,700VA (Fluorescent) |
| Coverage Angle | 180 deg |
| Overall Depth | 1.83 in |
| Installation Location | Wall |
| Overall Height | 4.06 in |
| Minimum Time Delay | 30 sec |
| Maximum Time Delay | 30 min |
| Coverage Type | Small Motion |
| Maximum Coverage Area | 2,100 sq ft |
| Load Rating @ 120V AC | 1,200VA (Fluorescent), 800W (Incandescent) |
| Maximum Operating Temperature | 122 deg F |
| Minimum Operating Temperature | 32 deg F |
| Sensor Operation | Occupancy, Photocell, Vacancy |
| Series | Decora |
| Overall Width | 1-3/4 in |
| Manufacturer Warranty | 5 yr |
| Load Rating @ 480V AC | Not Applicable |
| Mounting | Wall Switch |
| Application | Small offices, Conference rooms, Lounges, Classrooms |
| Standby Power | 120V - 100mW, 277V - 250mW |
| Wiring | Line-Black, Load-Blue, Ground-Green, No Neutral required |
| Sensor Technology | Passive Infrared |
| Size | Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83"(47mm), Install Depth 1.35"(34.4mm), Install Height 2.60"(66.2mm) |
| Neutral Wire Connection | Not Required |
| Frequency | 50/60Hz |
| Switch Type | Single-Pole |
| Relative Humidity | 20% to 90% non-condensing |
| Product Type | Occupancy Sensor |
| Coverage (Sq.Ft.) | 2100 |
| Mounting Type | Wall Switch |
| Listings | UL listed/CSA certified, can be used to comply with ASHRAE 90.1, and Title 24, Part 6 occupancy sensing control requirements and FCC regulations, NOM certified |
| Grade | Commercial |
| Operating Temperature | 0 to 50°C |
| Storage Temperature Range | 14° to 185°F |
| Pattern | 180° |
| Load Rating | Fluorescent: 1200VA @ 120V 2700VA @ 277V - Incandescent: 800W @ 120V Motor: 1/4 HP @ 120V |
| Package Quantity | 1 |
