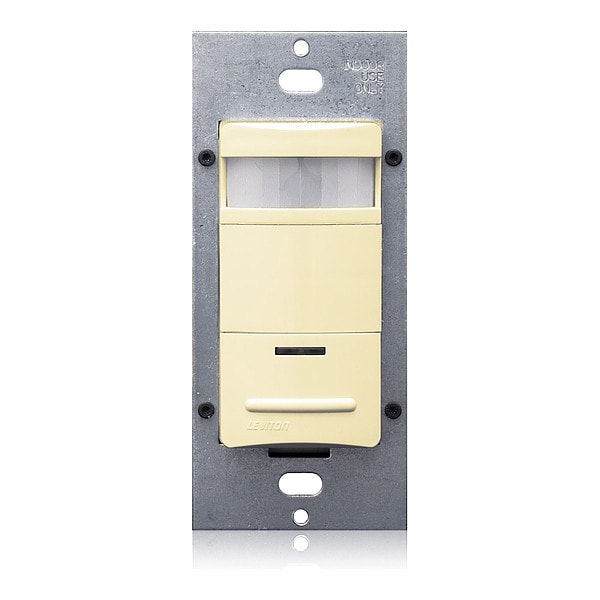

Occ Snsr, PIR, 120-277V AC, Ivory
| Item | Occupancy Sensor |
|---|---|
| Color | Ivory |
| Standards | ASHRAE 90.1, CSA Certified, FCC Approved, NOM, RoHS Compliant, Title 24, Part 6, UL Listed |
| Operating Voltage - Motion Sensing and Dimming | 120 to 277V AC |
| Coverage at Suggested Mounting Height | 2,100 sq ft |
| Sensing Technology | Passive Infrared |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Max. Capacity @ 277VAC | 2700VA (Fluorescent) |
| Color - Motion Sensing and Dimming | White |
| Description/Special Features | Convenient Pushbutton Provides Manual-On/Off Light Switching At Any Time, Exclusive Leviton H.I.S. Circuitry. Specifically Designed to Handle Today's High Inrush Electronic Ballast Loads and Offer Unmatched Durability and Service, False Detection Circuitry, Fits in Standard Wallbox and Replaces Single-Pole Wall Switch. Gangable With Other Units, Horizontal Field-Of-View May be Adjusted Between 180 Degrees and 60 Degrees of Arc by Using Integral Blinders Located on Either Side of the Lens. No Masking Tape Required, Light Sensor Enables the Load Hold-Off Feature Once Level Has Been Set, Low-Profile Design Eliminates Obtrusive "Scanning-Device" Look. Elegant Decora Styling Complements Any Interior, Presentation Mode Feature for Slide or Film Presentations Allows Push Buttons to Turn Lights Off and Keep Them Off While the Room is Occupied, Relay Switches At the Zero Crossing Point of the Ac Power Curve to Ensure Maximum Contact Life and Compatibility With Electronic Ballasts, Segmented Fresnel Lens Provides Optimum Sensitivity and Performance. Designed With An Extensive "Minor Motion" Area Where Even Slight Body Movements will be Detected, Time Delay Adjustment for Delayed-Off Time Set-Tings of 30 Seconds (for Walking Test), 10 Minutes, 20 Minutes, and 30 Minutes. Allows Customized Adjustments to Maximize Energy Savings, to Comply With T24, Red Led Indicator Light Flashes When Sensor Detects Motion to Verify Detection is Active, Uses Decora Wallplates and Coordinates With Leviton's Popular Line of Decora Wiring Devices, Vacancy Confirmation, Vandal Resistant PIR Lens |
| Coverage Angle - Motion Sensor | 180 Degrees |
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Includes | Photocell |
| Lighting Technology | Incandescent, LED |
| Time Delay - Motion Sensor | 30 sec to 30 min |
| Max. Capacity @ 120VAC | 1200V (Fluorescent), 800W (Incandescent) |
| Use With - Motion Sensing and Dimming | 1/4 HP Motor |
| Time Delay Adjustment Method - Motion Sensor | Adjustable |
| Installation Location - Motion Sensor | Wall Switch Box |
| Dimming Method | No Dimming |
| Overall Width | 1-3/4 in |
| Maximum Operating Temperature | 122 deg F |
| Overall Height | 4.06 in |
| Maximum Coverage Area | 2,100 sq ft |
| Fan Rated | Yes |
| Coverage Angle | 180 deg |
| Rated Frequency | 50/60 Hz |
| Load Rating @ 120V AC | 1,200VA (Fluorescent), 800W (Incandescent) |
| Number of Buttons | 1 |
| Minimum Time Delay | 30 sec |
| Includes Wall Plate | Wall Plate Not Included |
| Coverage Type | Small Motion |
| Maximum Detection Distance | 40 ft |
| Manufacturer Warranty | 5 yr |
| Series | Decora |
| Installation Location | Wall |
| Compatible with Series | Switching Only (universal) |
| Neutral Required | No |
| Dimming Type | No Dimming |
| Nightlight | No |
| Communication Method | Hard Wired |
| Sensor Operation | Occupancy, Photocell, Vacancy |
| Overall Depth | 1.83 in |
| Includes Motion Sensor | Yes |
| Horsepower Rating | 0.25 HP |
| Includes Dimming Switch | Dimming Switch Not Included |
| Load Rating @ 277V AC | 2,700VA (Fluorescent) |
| Minimum Operating Temperature | 32 Degrees F |
| Maximum Time Delay | 30 min |
| Load Rating @ 480V AC | Not Applicable |
| Operating Voltage | 120 to 277V AC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
