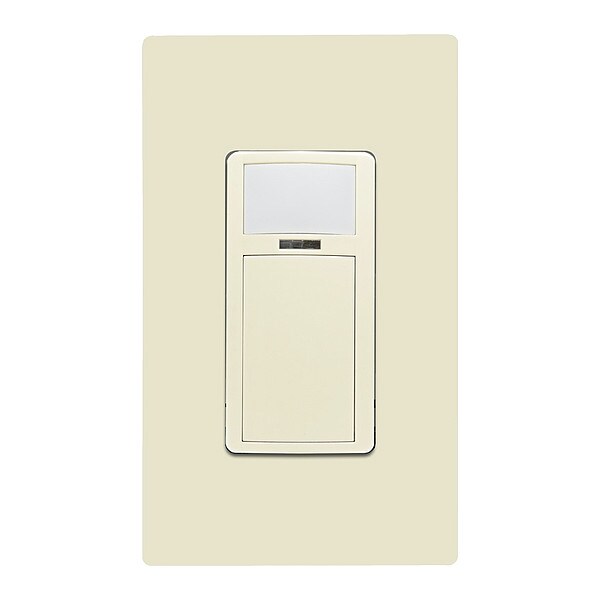

Occ Snsr, PIR, 120-277V AC, Ivory
| Item | Occupancy Sensor |
|---|---|
| Color | Ivory |
| Standards | ASHRAE 90.1, ETL/cETL Listed, FCC Approved, IECC, NOM, Title 24, Part 6 |
| Operating Voltage - Motion Sensing and Dimming | 120/230/277 V AC |
| Coverage at Suggested Mounting Height | 2,100 sq ft |
| Sensing Technology | Passive Infrared |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Color - Motion Sensing and Dimming | White |
| Max. Capacity @ 277VAC | 4000VA (Fluorescent) |
| Installation Location - Motion Sensor | Wall Switch Box |
| Max. Capacity @ 120VAC | 1800VA (Fluorescent), 1800W (Incandescent) |
| Coverage Angle - Motion Sensor | 180 Degrees |
| Lighting Technology | Incandescent, LED |
| Use With - Motion Sensing and Dimming | 1/4 HP Motor |
| Time Delay - Motion Sensor | 30 sec to 30 min |
| Time Delay Adjustment Method - Motion Sensor | Adjustable |
| Maximum Detection Distance | 40 ft |
| Coverage Type | Small Motion |
| Dimming Method | No Dimming |
| Series | Decora |
| Compatible with Series | Switching Only (universal) |
| Installation Location | Wall |
| Horsepower Rating | 0.25 HP |
| Communication Method | Hard Wired |
| Nightlight | Yes |
| Overall Height | 4.13 in |
| Overall Depth | 1.86 in |
| Neutral Required | Yes |
| Load Rating @ 480V AC | Not Applicable |
| Includes Wall Plate | Wall Plate Not Included |
| Manufacturer Warranty | 5 yr |
| Minimum Operating Temperature | 32 Degrees F |
| Overall Width | 2.12 in |
| Minimum Time Delay | 30 sec |
| Coverage Angle | 180 deg |
| Dimming Type | No Dimming |
| Maximum Time Delay | 30 min |
| Load Rating @ 120V AC | 10A (LED/Electronic Ballast, Standard Ballast), 20A (General Purpose), 5.8A FLA, 6.67A (Tungsten) |
| Load Rating @ 277V AC | 10A (LED/Electronic Ballast, Standard Ballast), 20A (General Purpose), 3A FLA (1/3 HP Motor), 6.67A (Tungsten) |
| Maximum Operating Temperature | 104 deg F |
| Sensor Operation | Occupancy, Photocell, Vacancy |
| Includes Motion Sensor | Yes |
| Number of Buttons | 1 |
| Maximum Coverage Area | 1,000 sq ft |
| Fan Rated | Yes |
| Rated Frequency | 50/60 Hz |
| Includes Dimming Switch | Dimming Switch Not Included |
| Operating Voltage | 120 to 277V AC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
