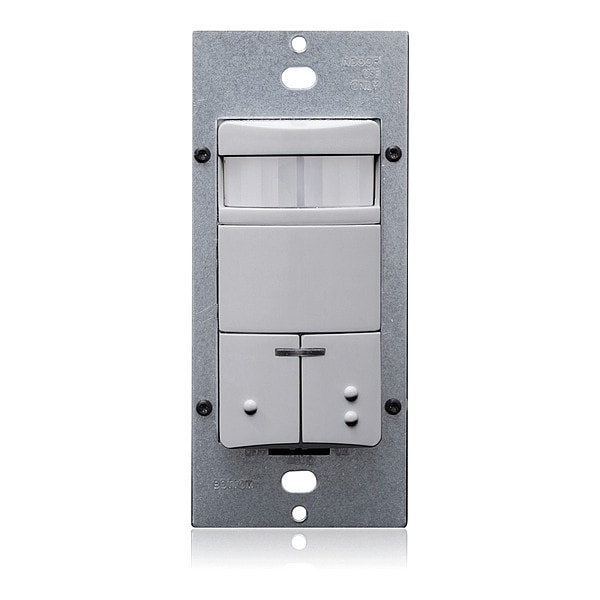

Occ Snsr, PIR, 120/230/277V AC, Gray
| Item | Occupancy Sensor |
|---|---|
| Color | Gray |
| Standards | cUL/US Certified, FCC Approved, Title 24, Part 6 |
| Operating Voltage - Motion Sensing and Dimming | 120/230/277 V AC |
| Coverage at Suggested Mounting Height | 2,100 sq ft |
| Sensing Technology | Passive Infrared |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Max. Capacity @ 277VAC | 2700V (Primary Relay Fluorescent) |
| Time Delay - Motion Sensor | 30 sec to 30 min |
| Color - Motion Sensing and Dimming | Gray |
| Max. Capacity @ 120VAC | 1200V (Primary Relay Fluorescent), 800V (Secondary Relay Fluorescent), 800W (Incandescent) |
| Description/Special Features | Beep Warn - Unit Beeps 3 Times After Delayed-Off Time Expires, then Waits 10 Seconds Before Turning Lights Off, Convenient Dual Pushbuttons Provide Manual-On/Off Light Switching of Each Load At Any Time, Daylight Harvesting Light Sensor Measures the Ambient Light in the Room When it First Detects Motion, Exclusive Leviton H.I.S. Circuitry, Exclusive Walk-Through, False Detection Circuitry, Ground Connection Required. Gangable With Other Devices, Horizontal Field-Of-View May be Adjusted Between 180 Degrees and 60 Degrees Arc by Using Integral Blinders Located on Either Side of the Lens. No Mask-Ing Tape Required, Light Sensor Adjustable Ambient Light Override Ranges From Approximately 2Fc (20 Lux) to 500+Fc (5000+ Lux), Low-Profile Design Eliminates Obtrusive "Scanning-Device" Look, Manual-On/Auto-Off Mode for Installations Where Manual-on Switching is Required But Auto-Off Switching is Still Desired for CEC Title T24 Energy Savings, ODSOD-ID Classroom Mode, ODSOD-ID Conference Room Mode, Presentation Mode, Segmented Fresnel Lens Provides Optimum Sensitivity and Performance. Designed With An Extensive "Minor Motion" Area Where Even Slight Body Movements will be Detected, to Comply With CEC Title 24, Red Led Indicator Light Flashes When PIR Sensor Detects Motion to Verify Detection is Active, Unit Fits in Standard Single-Gang Wallbox and Replaces Two Single-Pole Wall Switches, Vandal Resistant PIR Lens |
| Installation Location - Motion Sensor | Wall Switch Box |
| Lighting Technology | Incandescent, LED |
| Includes | Photocell |
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Coverage Angle - Motion Sensor | 180 Degrees |
| Time Delay Adjustment Method - Motion Sensor | Adjustable, Adaptive |
| Rated Frequency | 50/60 Hz |
| Minimum Operating Temperature | 32 Degrees F |
| Load Rating @ 480V AC | Not Applicable |
| Includes Dimming Switch | Dimming Switch Not Included |
| Neutral Required | No |
| Number of Gangs | 1 |
| Dimming Method | No Dimming |
| Manufacturer Warranty | 5 yr |
| Time Delay Adjustment Method | Adaptive |
| Fan Rated | Yes |
| Coverage Angle | 180 deg |
| Includes Wall Plate | Wall Plate Not Included |
| Coverage Type | Small Motion |
| Maximum Detection Distance | 40 ft |
| Sensor Operation | Occupancy, Photocell, Vacancy |
| Load Rating @ 277V AC | 2,700V (Primary Relay Fluorescent) |
| Series | Decora |
| Communication Method | Hard Wired |
| Load Rating @ 120V AC | 1,200VA (Primary Relay Fluorescent), 800V (Secondary Relay Fluorescent), 800W (Incandescent) |
| Minimum Time Delay | 30 sec |
| Includes Motion Sensor | Yes |
| Overall Height | 4.06 in |
| Maximum Operating Temperature | 122 deg F |
| Installation Location | Wall |
| Number of Buttons | 2 |
| Dimming Type | No Dimming |
| Nightlight | No |
| Maximum Coverage Area | 2,100 sq ft |
| Overall Width | 1-3/4 in |
| Overall Depth | 1.83 in |
| Compatible with Series | Switching Only (universal) |
| Maximum Time Delay | 30 min |
| Operating Voltage | 120/230/277V AC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
