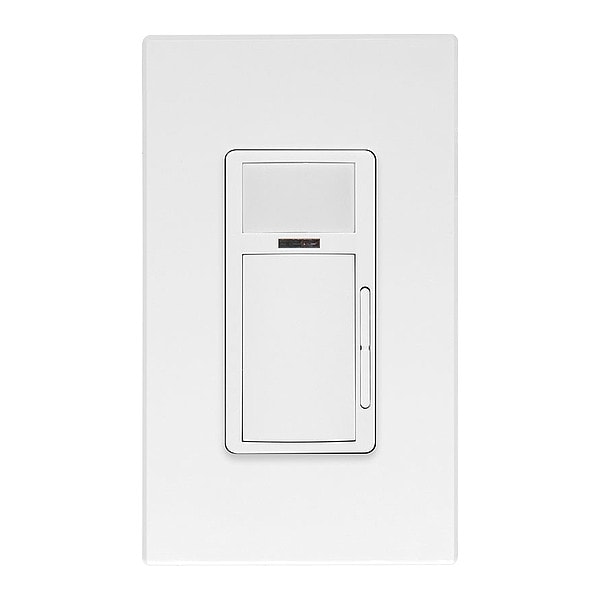

Sensor de ocupación, PIR, 120/230/277V CA, Blanco
| Item - Motion Sensing and Dimming | Occupancy Sensor; Vacancy Sensor |
|---|---|
| Sensing Technology | Passive Infrared (PIR) |
| Installation Location - Motion Sensor | Wall Switch Box |
| Coverage at Suggested Mounting Height | 1,100 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 12 to 24 V DC |
| Color - Motion Sensing and Dimming | White |
| Time Delay Adjustment Method - Motion Sensor | Adjustable |
| Coverage Angle - Motion Sensor | 180 deg |
| Item | Occupancy Sensor |
| Standards | ASHRAE 90.1, cUL Listed, FCC Approved, ICC, IECC, Title 24, Part 6, UL Listed |
| Description/Special Features | Advanced Configuration can be Performed Using the Leviton Smart Sensor App on Any Bluetooth Enabled Android or iOS Device: Set Operating Mode to Auto-On/Auto-Off or Manual-On/Auto-Off, Configure Dimming Options Such as Partial-0N, Partial-Off, and Partial-Off Timeouts, Fits in a Standard Wallbox and Gangable With Other Units, Nightlight and Daylighting Hold-Off Disabled, Out-Of-The-Box Configuration Default Mode: Auto-On/Auto-Off With 10-Minute Time Out, Sensitivity Set to 75% |
| Color | White |
| Load Rating @ 277V AC | Not Applicable |
| Overall Height | 4.13 in |
| Load Rating @ 480V AC | Not Applicable |
| Maximum Detection Distance | 40 ft |
| Fan Rated | No |
| Communication Method | Hard Wired |
| Minimum Operating Temperature | 32 Degrees F |
| Includes Wall Plate | Wall Plate Not Included |
| Minimum Coverage Area | 400 sq ft |
| Dimming Method | 0-10V |
| Manufacturer Warranty | 5 yr |
| Overall Depth | 1.86 in |
| Series | Smart / Decora |
| Coverage Type | Small Motion |
| Load Rating @ 120V AC | Low voltage sensor (24VDC), power pack switches lighting load, Requires power pack for 24VDC input voltage |
| Compatible with Series | 0-10V Dimming Ballast |
| Sensor Operation | 0 to 10V Dimming, Occupancy, Photocell, Vacancy |
| Maximum Operating Temperature | 104 deg F |
| Nightlight | Yes |
| Neutral Required | No |
| Maximum Coverage Area | 1,100 sq ft |
| Overall Width | 2.12 in |
| Coverage Angle | 180 Degrees |
| Dimming Type | Full Continuous Dimming |
| Includes Dimming Switch | Dimming Switch Included |
| Includes Motion Sensor | Yes |
| Installation Location | Wall |
| Rated Frequency | 50/60 Hz |
| Number of Buttons | 2 |
| Sensor Type | Vacancy, Occupancy |
| Switch Type | Single-Pole |
| Product Type | Smart Sensor |
| Sensor Technology | Passive Infrared |
| Feature | App configurable |
| Size | Height 4.13" (104.9mm), Width 2.12" (53.95mm), Depth 1.86" (47.25mm), Install Depth 1.42" (36.22mm) |
| Storage Temperature Range | -40° to 185°F |
| Grade | Commercial |
| Operating Temperature | 0°C to 40°C |
| Listings | IECC, UL and cUL listed, FCC, ICC |
| Mounting | Wall Switch |
| Application | Small Offices, Lobbies, Small Meeting Rooms |
| Coverage (Sq.Ft.) | 1,100 |
| Neutral Wire Connection | Not Required |
| IP Rating | IP10 |
| Input Current | 24V: 0.02A - 120-277V: N/A |
| Testing and Code Compliance | Can be used to comply with ASHRAE 90.1, IECC and Title 24, Part 6 occupancy/vacancy sensing, dimming, and manual-ON/auto-OFF requirements |
| Voltage | 12-24 VDC |
| Pattern | 180° |
| Package Quantity | 1 |
