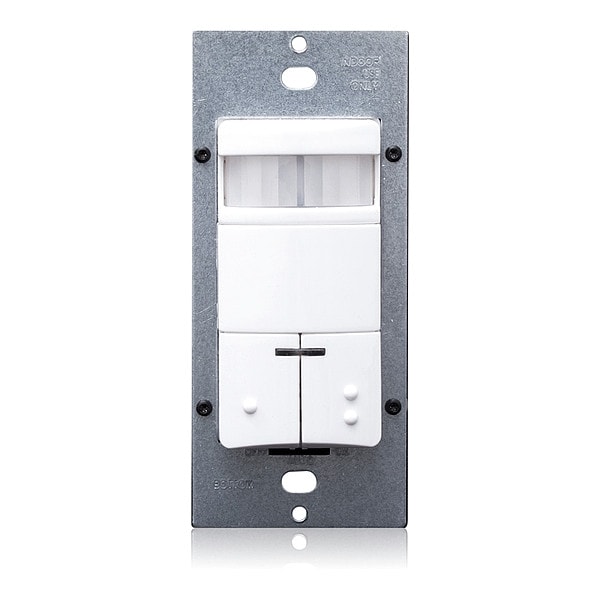

Occ Snsr, PIR, 120/230/277V AC, Wht
| Item | Occupancy Sensor |
|---|---|
| Color | White |
| Standards | cUL/US Certified, FCC Approved, Title 24, Part 6 |
| Operating Voltage - Motion Sensing and Dimming | 120/230/277 V AC |
| Coverage at Suggested Mounting Height | 2,100 sq ft |
| Sensing Technology | Passive Infrared |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Description/Special Features | Beep Warn - Unit Beeps 3 Times After Delayed-Off Time Expires, then Waits 10 Seconds Before Turning Lights Off, Convenient Dual Pushbuttons Provide Manual-On/Off Light Switching of Each Load At Any Time, Daylight Harvesting Light Sensor Measures the Ambient Light in the Room When it First Detects Motion, Exclusive Leviton H.I.S. Circuitry, Exclusive Walk-Through, False Detection Circuitry, Ground Connection Required. Gangable With Other Devices, Horizontal Field-Of-View May be Adjusted Between 180 Degrees and 60 Degrees Arc by Using Integral Blinders Located on Either Side of the Lens. No Mask-Ing Tape Required, Light Sensor Adjustable Ambient Light Override Ranges From Approximately 2Fc (20 Lux) to 500+Fc (5000+ Lux), Low-Profile Design Eliminates Obtrusive "Scanning-Device" Look, Manual-On/Auto-Off Mode for Installations Where Manual-on Switching is Required But Auto-Off Switching is Still Desired for CEC Title T24 Energy Savings, ODSOD-ID Classroom Mode, ODSOD-ID Conference Room Mode, Presentation Mode, Segmented Fresnel Lens Provides Optimum Sensitivity and Performance. Designed With An Extensive "Minor Motion" Area Where Even Slight Body Movements will be Detected, to Comply With CEC Title 24, Red Led Indicator Light Flashes When PIR Sensor Detects Motion to Verify Detection is Active, Unit Fits in Standard Single-Gang Wallbox and Replaces Two Single-Pole Wall Switches, Vandal Resistant PIR Lens |
| Max. Capacity @ 277VAC | 2700V (Primary Relay Fluorescent) |
| Installation Location - Motion Sensor | Wall Switch Box |
| Max. Capacity @ 120VAC | 1200V (Primary Relay Fluorescent), 800V (Secondary Relay Fluorescent), 800W (Incandescent) |
| Time Delay Adjustment Method - Motion Sensor | Adjustable, Adaptive |
| Coverage Angle - Motion Sensor | 180 Degrees |
| Item - Motion Sensing and Dimming | Occupancy Sensor |
| Includes | Photocell |
| Time Delay - Motion Sensor | 30 sec to 30 min |
| Lighting Technology | Incandescent, LED |
| Color - Motion Sensing and Dimming | White |
| Includes Wall Plate | Wall Plate Not Included |
| Coverage Type | Small Motion |
| Minimum Time Delay | 30 sec |
| Load Rating @ 277V AC | 2,700V (Primary Relay Fluorescent) |
| Nightlight | No |
| Includes Motion Sensor | Yes |
| Overall Depth | 1.83 in |
| Neutral Required | No |
| Maximum Time Delay | 30 min |
| Maximum Detection Distance | 40 ft |
| Rated Frequency | 50/60 Hz |
| Coverage Angle | 180 deg |
| Load Rating @ 120V AC | 1,200VA (Primary Relay Fluorescent), 800V (Secondary Relay Fluorescent), 800W (Incandescent) |
| Fan Rated | Yes |
| Time Delay Adjustment Method | Adaptive |
| Installation Location | Wall |
| Compatible with Series | Switching Only (universal) |
| Number of Gangs | 1 |
| Communication Method | Hard Wired |
| Minimum Operating Temperature | 32 Degrees F |
| Overall Height | 4.06 in |
| Series | Decora |
| Sensor Operation | Occupancy, Photocell, Vacancy |
| Maximum Coverage Area | 2,100 sq ft |
| Manufacturer Warranty | 5 yr |
| Overall Width | 1-3/4 in |
| Includes Dimming Switch | Dimming Switch Not Included |
| Dimming Type | No Dimming |
| Number of Buttons | 2 |
| Maximum Operating Temperature | 122 deg F |
| Dimming Method | No Dimming |
| Load Rating @ 480V AC | Not Applicable |
| Operating Voltage | 120/230/277V AC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
