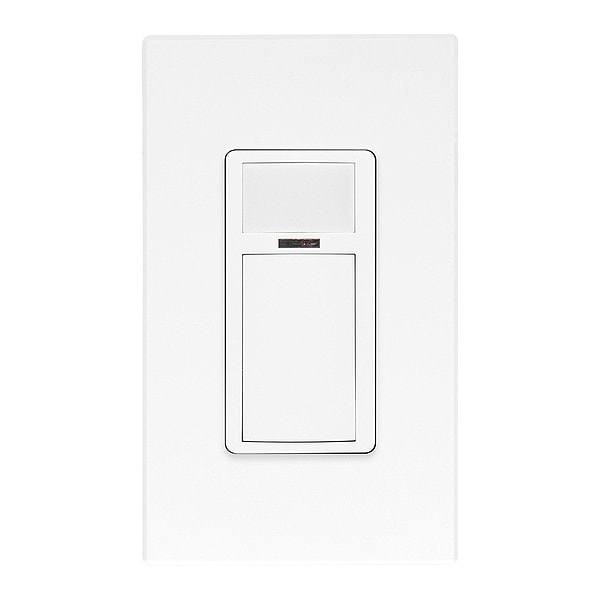

Sensor de ocupación, PIR, 120V CA, Blanco
| Item - Motion Sensing and Dimming | Occupancy Sensor; Vacancy Sensor |
|---|---|
| Sensing Technology | Passive Infrared (PIR) |
| Installation Location - Motion Sensor | Wall Switch Box |
| Coverage at Suggested Mounting Height | 1,000 sq ft |
| Operating Voltage - Motion Sensing and Dimming | 120 V AC |
| Color - Motion Sensing and Dimming | White |
| Coverage Angle - Motion Sensor | 180 deg |
| Use With - Motion Sensing and Dimming | 1/3 HP Motor, 1/4 HP Motor, LED/Electronic Ballast, Standard Ballast, Tungsten |
| Lighting Technology | Incandescent |
| Description/Special Features | Adjust the Sensitivity of the Sensor to Increase or Decrease Coverage Area: Adjust Timeouts, Activate the Nightlight and Select Nightlight Colors, Add Daylighting Hold-Off and Select Target Daylighting Levels, Advanced Configuration can be Performed Using the Leviton Smart Sensor App on Any Bluetooth Enabled Android or iOS Device: Set Operating Mode to Auto-On/Auto-Off or Manual-On/Auto-Off, Controls General Purpose Plug Loads Up to 20a and Led Lighting Loads Up to 10A, Fits in a Standard Wallbox and Gangable With Other Units, Maximum Sensing Distance in Front of the Sensor is 30-40 Feet and 15-20 Feet on Either Side, Nightlight and Daylighting Disabled, One Relay Module for Single-Level Switching, Sensitivity Set to 75%, Set a Security Code to Lock Configuration Settings |
| Max. Capacity @ 277VAC | 10A (LED/Electronic Ballast, Standard Ballast), 20A (General Purpose), 6.67A (Tungsten), FLA 3.0A (1/3 HP Motor) |
| Max. Capacity @ 120VAC | 10A (LED/Electronic Ballast, Standard Ballast), 20A (General Purpose), 6.67A (Tungsten), FLA 5.8A (1/4 HP Motor) |
| Standards | ASHRAE 90.1, ETL/cETL Listed, FCC Approved, IECC, NOM, Title 24, Part 6 |
| Item | Occupancy Sensor |
| Color | White |
| Maximum Coverage Area | 1,000 sq ft |
| Dimming Method | No Dimming |
| Communication Method | Hard Wired |
| Minimum Operating Temperature | 32 Degrees F |
| Load Rating @ 120V AC | 10A (LED/Electronic Ballast, Standard Ballast), 20A (General Purpose), 5.8A FLA (1/4 HP Motor), 6.67A (Tungsten) |
| Manufacturer Warranty | 5 yr |
| Number of Buttons | 1 |
| Includes Motion Sensor | Yes |
| Load Rating @ 277V AC | 10A (LED/Electronic Ballast, Standard Ballast), 20A (General Purpose), 3A FLA (1/3 HP Motor), 6.67A (Tungsten) |
| Includes Wall Plate | Wall Plate Not Included |
| Coverage Type | Small Motion |
| Series | Decora |
| Maximum Detection Distance | 40 ft |
| Rated Frequency | 60 Hz |
| Installation Location | Wall |
| Fan Rated | Yes |
| Overall Height | 4.13 in |
| Dimming Type | No Dimming |
| Overall Width | 2.12 in |
| Compatible with Series | Switching Only |
| Overall Depth | 1.86 in |
| Neutral Required | Yes |
| Coverage Angle | 180 Degrees |
| Sensor Operation | Occupancy, Photocell, Vacancy |
| Horsepower Rating | 0.3125 HP |
| Maximum Operating Temperature | 104 deg F |
| Includes Dimming Switch | Dimming Switch Not Included |
| Load Rating @ 480V AC | Not Applicable |
| Nightlight | Yes |
| Voltage | 120 VAC |
| Load Rating | General Purpose @ 120V: 20A - General Purpose @ 277V: 20A - LED/Electronic Ballast @ 120V: 10A, - LED/Electronic Ballast @ 277V: 10A - Standard Ballast @ 120V: 10A - Standard Ballast @ 277V: 10A - Tungsten @ 120V: 6.67A - Tungsten @ 277V: 6.67A - Motor @ 120V: 1/4HP (FLA 5.8A) - Motor @ 277V: 1/3HP (FLA 3.0A) |
| Sensor Technology | Passive Infrared |
| IP Rating | IP10 |
| Pattern | 180° |
| Switch Type | Single-Pole |
| Listings | IECC, UL and cUL listed, FCC, ICC |
| Feature | App configurable |
| Sensor Type | Vacancy, Occupancy |
| Coverage (Sq.Ft.) | 1,000 |
| Testing and Code Compliance | Can be used to comply with ASHRAE 90.1, IECC and Title 24, Part 6 occupancy/vacancy sensing and dimming requirements |
| Mounting | Wall Switch |
| Size | Height 4.13" (104.9mm), Width 2.12" (53.95mm), Depth 1.86" (47.25mm), Install Depth 1.42" (36.22mm) |
| Product Type | Smart Sensor |
| Storage Temperature Range | -40° to 185°F |
| Neutral Wire Connection | Required |
| Operating Temperature | 0°C to 40°C |
| Application | Small Offices, Lobbies, Small Meeting Rooms |
| Frequency | 60Hz |
| Input Current | 120V: Standby: 0.2W Max: 0.5W+Load Current - 277V: Standby: 0.3W Max: 0.6W+Load Current |
| Grade | Commercial |
| Package Quantity | 1 |
